GDI+ Draw Line Frage

**Sprenger120**

Hi Com,

ich habe mit GDI+ viele Linien gezeichnet und will diese einzeln löschen. Geht das ?

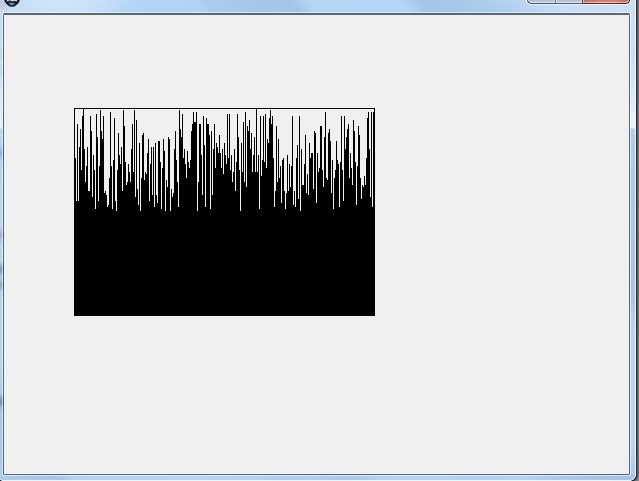

hier ein Foto

und mein Skript

Spoiler anzeigen

[autoit]

#include <GUIConstantsEx.au3>
#include <WindowsConstants.au3>
#include <GDIPlus.au3>
$hGUI = GUICreate("", 625, 443, 237, 168)
GUISetState(@SW_SHOW)

[/autoit] [autoit][/autoit] [autoit][/autoit] [autoit]

_GDIPlus_Startup()

[/autoit] [autoit][/autoit] [autoit]

Dim $Drawed[5]
$Drawed[0] = 70 ;x
$Drawed[1] = 90 ;y
$Drawed[2] = 200 ;Höhe
$Drawed[3] = 300 ;Breite
$Drawed[4] = _GDIPlus_GraphicsCreateFromHWND($hGUI)

[/autoit] [autoit][/autoit] [autoit]

_GDIPlus_GraphicsDrawRect($Drawed[4], $Drawed[0], $Drawed[1], $Drawed[3], $Drawed[2])

[/autoit] [autoit][/autoit] [autoit][/autoit] [autoit][/autoit] [autoit][/autoit] [autoit]

For $x = 0 to 300
;~ $x += 1
$random = Random(50, 100, 1)
_DiagramDrawVaule($Drawed, $x, $random)
Next

[/autoit] [autoit][/autoit] [autoit][/autoit] [autoit][/autoit] [autoit][/autoit] [autoit]

While 1
$nMsg = GUIGetMsg()
Switch $nMsg
Case -3
Exit

[/autoit] [autoit][/autoit] [autoit]

EndSwitch
WEnd

[/autoit] [autoit][/autoit] [autoit][/autoit] [autoit]

Func _DiagramDrawVaule($aVaules, $nCount, $nPerc)
;~ $x = $aVaules[0]
;~ $y = $aVaules[1]
;~ $Hoehe = $aVaules[2]
;~ $Breite = $aVaules[3]
If $nCount < 1 Then Return False
If $nPerc < 0 Then Return False
Return _GDIPlus_GraphicsDrawLine($aVaules[4], _
$aVaules[0] + $nCount , _
$aVaules[1] + $aVaules[2], _
$aVaules[0] + $nCount, _
$aVaules[1] + $aVaules[2] - ($nPerc * 2))
EndFunc ;==>_DiagramDrawVaule

[/autoit]

schon mal Danke vom vorraus

SEuBo

Löschen/Radieren ist nicht. Du musst schon mit weiß drübermalen.*

*Alle Angaben ohne Gewähr

**Sprenger120**

ich habs so probiert aber es wird nichts gezeichnet obwohn Drwa LIne und Pen Create was Positives zurück geben

Spoiler anzeigen

[autoit]

#include <GUIConstantsEx.au3>
#include <WindowsConstants.au3>
#include <GDIPlus.au3>
$hGUI = GUICreate("", 625, 443, 237, 168)
GUISetState(@SW_SHOW)

[/autoit] [autoit][/autoit] [autoit][/autoit] [autoit]

_GDIPlus_Startup()

[/autoit] [autoit][/autoit] [autoit]

Dim $Drawed[6]
$Drawed[0] = 70 ;x
$Drawed[1] = 90 ;y
$Drawed[2] = 200 ;Höhe
$Drawed[3] = 300 ;Breite
$Drawed[4] = _GDIPlus_GraphicsCreateFromHWND($hGUI)
$Drawed[5] = 0
_GDIPlus_GraphicsDrawRect($Drawed[4], $Drawed[0], $Drawed[1], $Drawed[3], $Drawed[2])

[/autoit] [autoit][/autoit] [autoit][/autoit] [autoit][/autoit] [autoit]

While 1
$random = Random(50, 100, 1)
$Drawed = _DiagramDrawVaule($Drawed, $random)
WEnd

[/autoit] [autoit][/autoit] [autoit][/autoit] [autoit][/autoit] [autoit][/autoit] [autoit]

While 1
$nMsg = GUIGetMsg()
Switch $nMsg
Case -3
_GDIPlus_GraphicsDispose($Drawed[4])
_GDIPlus_Shutdown()
Exit
EndSwitch
WEnd

[/autoit] [autoit][/autoit] [autoit][/autoit] [autoit][/autoit] [autoit][/autoit] [autoit][/autoit] [autoit][/autoit] [autoit]

Func _DiagramDrawVaule($aVaules, $nPerc)
Local $sRet
If $nPerc < 0 Then Return False
$sRet = _GDIPlus_GraphicsDrawLine($aVaules[4], _
$aVaules[0] + $aVaules[5], _
$aVaules[1] + $aVaules[2], _
$aVaules[0] + $aVaules[5], _
$aVaules[1] + $aVaules[2] - ($nPerc * 2))
If $sRet = True Then
$aVaules[5] += 1
If $aVaules[5] = $aVaules[3] + 1 Then
$hPen = _GDIPlus_PenCreate(0x000000FF)
;~ MsgBox(0,0,_GDIPlus_PenGetColor($hPen))
For $x = 1 To $aVaules[3]
_GDIPlus_GraphicsDrawLine($aVaules[4], _
$aVaules[0] + $x, _
$aVaules[1] + $aVaules[2], _
$aVaules[0] + $x, _
$aVaules[1] + $aVaules[2] - (100 * 2), $hPen)
Next
_GDIPlus_PenDispose($hPen)
$aVaules[5] = 0
EndIf
Return $aVaules
EndIf
EndFunc ;==>_DiagramDrawVaule

[/autoit] [autoit][/autoit] [autoit][/autoit]

SEuBo

Probier mal so:

Spoiler anzeigen

[autoit]

#include <GUIConstantsEx.au3>
#include <WindowsConstants.au3>
#include <GDIPlus.au3>
$hGUI = GUICreate("", 625, 443, 237, 168)
GUISetState(@SW_SHOW)

[/autoit] [autoit][/autoit] [autoit][/autoit] [autoit]

_GDIPlus_Startup()

[/autoit] [autoit][/autoit] [autoit]

Dim $Drawed[6]
$Drawed[0] = 70 ;x
$Drawed[1] = 90 ;y
$Drawed[2] = 200 ;Höhe
$Drawed[3] = 300 ;Breite
$Drawed[4] = _GDIPlus_GraphicsCreateFromHWND($hGUI)
$Drawed[5] = 0
_GDIPlus_GraphicsDrawRect($Drawed[4], $Drawed[0], $Drawed[1], $Drawed[3], $Drawed[2])

[/autoit] [autoit][/autoit] [autoit][/autoit] [autoit][/autoit] [autoit]

For $i = 0 To 300
$random = Random(50, 100, 1)
$Drawed = _DiagramDrawVaule($Drawed, $random)
Next

[/autoit] [autoit][/autoit] [autoit]

Sleep(1000)

[/autoit] [autoit][/autoit] [autoit]

For $i = 100 to 150
_DiagramDelVaule($Drawed,$i)
Next

[/autoit] [autoit][/autoit] [autoit][/autoit] [autoit][/autoit] [autoit]

While 1
$nMsg = GUIGetMsg()
Switch $nMsg
Case -3
_GDIPlus_GraphicsDispose($Drawed[4])
_GDIPlus_Shutdown()
Exit
EndSwitch
WEnd

[/autoit] [autoit][/autoit] [autoit][/autoit] [autoit]

Func _DiagramDelVaule($aVaules,$iSel)
Local $sRet
ConsoleWrite(Hex(15790320,6) & @CRLF)
$hPen = _GDIPlus_PenCreate(0xFFF0F0F0)
$sRet = _GDIPlus_GraphicsDrawLine($aVaules[4],$aVaules[0]+$iSel,$aVaules[1]+1,$aVaules[0]+$iSel,$aVaules[1]+$aVaules[2]-1,$hPen)
_GDIPlus_PenDispose($hPen)
If $sRet = True Then
Return $aVaules
EndIf
EndFunc ;==>_DiagramDrawVaule

[/autoit] [autoit][/autoit] [autoit]

Func _DiagramDrawVaule($aVaules, $nPerc)
Local $sRet
If $nPerc < 0 Then Return False
$sRet = _GDIPlus_GraphicsDrawLine($aVaules[4], _
$aVaules[0] + $aVaules[5], _
$aVaules[1] + $aVaules[2], _
$aVaules[0] + $aVaules[5], _
$aVaules[1] + $aVaules[2] - ($nPerc * 2))
If $sRet = True Then
$aVaules[5] += 1
If $aVaules[5] = $aVaules[3] + 1 Then
$hPen = _GDIPlus_PenCreate(0x000000FF)
;~ MsgBox(0,0,_GDIPlus_PenGetColor($hPen))
For $x = 1 To $aVaules[3]
_GDIPlus_GraphicsDrawLine($aVaules[4], _
$aVaules[0] + $x, _
$aVaules[1] + $aVaules[2], _
$aVaules[0] + $x, _
$aVaules[1] + $aVaules[2] - (100 * 2), $hPen)
Next
_GDIPlus_PenDispose($hPen)
$aVaules[5] = 0
EndIf
Return $aVaules
EndIf
EndFunc ;==>_DiagramDrawVaule

[/autoit]

**Sprenger120**

super so funktoinierts
