Beiträge von eukalyptus

**eukalyptus**

Evtl. habe ich viel zu kompliziert gedacht!

Probier mal folgendes:

Code

Local $oErrorHandler = ObjEvent("AutoIt.Error", "_ErrFunc")
Func _ErrFunc($oError)
	ConsoleWrite("err.number is: " & @TAB & @TAB & "0x" & Hex($oError.number) & @CRLF & "err.windescription:" & @TAB & $oError.windescription & @CRLF)
EndFunc   ;==>_ErrFunc





Global $oApp = ObjCreate("IMSIGX.Application")
ConsoleWrite("! App: " & IsObj($oApp) & @CRLF)

Global $oActDr = $oApp.ActiveDrawing
ConsoleWrite("! ActDr: " & IsObj($oActDr) & @CRLF)

Global $oGrs = $oActDr.Graphics
ConsoleWrite("! Grs: " & IsObj($oGrs) & @CRLF)

Alles anzeigen

Edit, das hier:

AutoIt

Local $oErrorHandler = ObjEvent("AutoIt.Error", "_ErrFunc")
Func _ErrFunc($oError)
	ConsoleWrite("err.number is: " & @TAB & @TAB & "0x" & Hex($oError.number) & @CRLF & "err.windescription:" & @TAB & $oError.windescription & @CRLF)
EndFunc   ;==>_ErrFunc



ConsoleWrite(@CRLF & "+########################" & @CRLF & "+ ObjCreate:" & @CRLF)
Global $oApp = ObjCreate("TurboCAD.Application")
ConsoleWrite("! App: " & IsObj($oApp) & @CRLF)

ConsoleWrite(@CRLF & "+########################" & @CRLF & "+ ActiveDrawing:" & @CRLF)
Global $oActDr = $oApp.ActiveDrawing
ConsoleWrite("! ActDr: " & IsObj($oActDr) & @CRLF)

ConsoleWrite(@CRLF & "+########################" & @CRLF & "+ Graphics:" & @CRLF)
Global $oGrs = $oActDr.Graphics
ConsoleWrite("! Grs: " & IsObj($oGrs) & @CRLF)


ConsoleWrite(@CRLF & "+########################" & @CRLF & "+ Add:" & @CRLF)
Global $oGr = $oGrs.Add(11, "TCW25DblLine")
ConsoleWrite("! Grs: " & IsObj($oGrs) & @CRLF)

With $oGr.Vertices
	.Add(1, 1, 0)
	.Add(5, 1, 0)
	.Add(5, 5, 0)
	.Add(1, 5, 0)
EndWith

$oActDr.Views(0).Refresh

Alles anzeigen

**eukalyptus**

OK

Schritt 1: DllOpen:

Erste Ausgabe sollte sein: "! 0 0" <- d.h. kein Error (sowohl normal Error, als auch Extended Error) ((Diese Ausgabe kannst du in diesem Fall ignoerieren, weil @error und @extended anscheinden hier nicht verwendet werden..., aber zur Fehlersuche solltest du dir diese 2 Variablen immer ausgeben lassen))

Zweitew Ausgabe sollte sein: "> DLL: 1" <- Der Wert der geladenen DLL; Alles größer als 0 ist super. "-1" bedeutet, dass die DLL nicht geladen wurde.

In deinem Fall: "> DLL: -1" wurde die DLL nicht geladen! evtl falscher Pfad. Kopier dein Test.au3 Script mal direkt in das Verzeichnis, wo die DLL liegt und probiere es von dort aus...

lgE

ps.: ich benutze AutoIt Version 3.3.16.1

**eukalyptus**

Haha, ein Spezialist bin ich wohl eher nicht!

Ich hab mir das aus verschiedenen Sourcecodes zusammengesucht.

Das wirst do auch machen müssen. Einen funktionstüchtigen Code einer anderen Sprache durchgehen und versuchen das nachzubasteln.

Hier mal eine kleine Starthilfe:

AutoIt

#AutoIt3Wrapper_UseX64 = n
#include <WinAPIConv.au3>


Global $hDLL = DllOpen("Imsigx.dll")
ConsoleWrite("! " & @error & " " & @extended & @CRLF)
ConsoleWrite("> DLL: " & $hDLL & @CRLF)


Local $tCLSID = _WinAPI_GUIDFromString("{6A481000-E531-11CF-A115-00A024158DAF}")
Local $tIID = _WinAPI_GUIDFromString("{6A481100-E531-11CF-A115-00A024158DAF}")


;Vielleicht so:
Global $aResult = DllCall($hDLL, "hwnd", "DllGetClassObject", "struct*", $tCLSID, "struct*", $tIID, "ptr*", 0)
ConsoleWrite("! " & @error & " " & @extended & @CRLF)
ConsoleWrite("! Error: " & $aResult[0] & @CRLF) ;Windows Error Code
ConsoleWrite("> PTR: " & $aResult[3] & @CRLF)
Global $pPTR = $aResult[3]


;Oder so:
Local $aResult = DllCall("Ole32.dll", "hwnd", "CoCreateInstance", "struct*", $tCLSID, "struct*", Null, "uint", 0x1, "struct*", $tIID, "ptr*", 0)
ConsoleWrite("! " & @error & " " & @extended & @CRLF)
ConsoleWrite("! Error: " & $aResult[0] & @CRLF) ;Windows Error Code
ConsoleWrite("> PTR: " & $aResult[5] & @CRLF)
Global $pPTR = $aResult[5]




Global $sIID_IGlobal = "{6A481100-E531-11CF-A115-00A024158DAF}"

Global $tag_IGlobal = "Get_ActiveDrawing ptr;" & _
		"Get_ActivePrinter wstr;" & _
		"Set_ActivePrinter none(wstr);" & _
		"Get_ActiveWindow hwnd;"
		;Restliche Methoden kommen hier noch dazu

Global $oOBJ = ObjCreateInterface($pPTR, $sIID_IGlobal, $tag_IGlobal)
ConsoleWrite("! " & @error & " " & @extended & @CRLF)
ConsoleWrite("> OBJ: " & IsObj($oOBJ) & @CRLF)

Alles anzeigen

lgE

**eukalyptus**

Hi,

also erstmal Respekt, du hast wirklich sehr viel selber erarbeitet und gelernt!

Leider besitze ich kein TurboCAD (bzw. diese DLL), somit ist die Fehlersuche etwas schwierig.

Du hast nach deinem 2 Schritt (DllCall) tatsächlich einen Pointer?

Danach kommt dann ObjCreateInterface:

Der erste Parameter ist der Pointer aus Schritt 2.

Der zweite Parameter ist die IID. (überprüfe, ob du {6A481100-E531-11CF-A115-00A024158DAF} auch irgendwo in VBA oder sonstigen Includefiles findest, dann hast du Gewissheit, dass er das stimmt)

Der dritte Parameter ist nun das Interface - lass das vorerst mal weg und schau, ob ein Obj erstellt wird.

Wenn das dann mal soweit funktioniert, dann kümmern wir uns um das Interface.

lgE

**eukalyptus**

Hi

Mit ObjCreateInterface kannst du aus einem DLL-Return Pointer ein COM Object machen.

Ist schon ein Weilchen her, aber in Direct2D und DirectSound hab ich das so verwendet damals.

In den Include files von VB, oder auch andernen Sprachen findest du vielleicht das passende.

Du benötigst die IIDs, die etwa folgende Struktur haben: "{00000000-0000-0000-0000-000000000000}" und die Interface Description, die etwa so aufgebaut ist, wie DLL Structs.

**eukalyptus**

Ja, ich weiß selber, dass ich eingerostet bin

**eukalyptus**

Vieln Dank euch allen!

Ich werde nun die Accelerators Methode verwenden!

AutoIt

#include <GUIConstantsEx.au3>
#include <GUIListView.au3>

Opt("GUIOnEventMode", 1)

Global $hGui = GUICreate("Test", 320, 240)
GUISetOnEvent($GUI_EVENT_CLOSE, "_GUI_EVENT_CLOSE")

Global $cLV_Test = GUICtrlCreateListView("Name", 5, 5, 150, 230, BitOR($LVS_REPORT, $LVS_SHOWSELALWAYS))
Global $cLV_Test2 = GUICtrlCreateListView("Name", 160, 5, 150, 230, BitOR($LVS_REPORT, $LVS_SHOWSELALWAYS))
For $i = 1 To 9
    _GUICtrlListView_AddItem($cLV_Test, "Item" & $i)
    _GUICtrlListView_AddItem($cLV_Test2, "Item" & $i)
Next

Global $cDM_CTRLA = GUICtrlCreateDummy()
GUICtrlSetOnEvent(-1, '_SelectAll')
Global $aAccelKeys[1][2] = [["^a", $cDM_CTRLA]]
GUISetAccelerators($aAccelKeys)

GUISetState(@SW_SHOW)



While Sleep(10)
WEnd



Func _SelectAll()
    Local $sClassName = ControlGetFocus($hGui)
    If $sClassName <> '' Then
        Local $hActive = ControlGetHandle($hGui, '', $sClassName)
        _GUICtrlListView_BeginUpdate($hActive)
        For $i = 0 To _GUICtrlListView_GetItemCount($hActive) - 1
            _GUICtrlListView_SetItemSelected($hActive, $i)
        Next
        _GUICtrlListView_EndUpdate($hActive)
    EndIf
EndFunc   ;==>_SelectAll


Func _GUI_EVENT_CLOSE()
    Exit
EndFunc   ;==>_GUI_EVENT_CLOSE

Alles anzeigen

lgE

**eukalyptus**

Vielen Dank!

Leider funktioniert das bei mir nicht ganz so, wie ich will.

Ich hätte erwähnen sollen, dass ich 9 Listviews nebeneinander hab

Ein KeyUp wird leider auch nicht ausgewertet. (könnte man aber mit einem TimeOut versehen)

Ich hab jetzt mal eine Hook Variante und eine simple Variante mit _IsPressed probiert:

AutoIt

#include <GUIConstantsEx.au3>
#include <WindowsConstants.au3>
#include <GUIListView.au3>
#include <WinAPI.au3>
#include <Misc.au3>


Opt("GUIOnEventMode", 1)

Global $hGui = GUICreate("Test", 320, 240)
GUISetOnEvent($GUI_EVENT_CLOSE, "_GUI_EVENT_CLOSE")

Global $cLV_Test = GUICtrlCreateListView("Name", 5, 5, 150, 230, BitOR($LVS_REPORT, $LVS_SHOWSELALWAYS))
Global $cLV_Test2 = GUICtrlCreateListView("Name", 160, 5, 150, 230, BitOR($LVS_REPORT, $LVS_SHOWSELALWAYS))
For $i = 1 To 9
    _GUICtrlListView_AddItem($cLV_Test, "Item" & $i)
    _GUICtrlListView_AddItem($cLV_Test2, "Item" & $i)
Next


Global $bCTRLKEYDOWN_L, $bCTRLKEYDOWN_R
Global $hKeyProc = DllCallbackRegister("_KeyProc", "long", "int;wparam;lparam")
Global $hMod = _WinAPI_GetModuleHandle(0)
Global $hHook = _WinAPI_SetWindowsHookEx($WH_KEYBOARD_LL, DllCallbackGetPtr($hKeyProc), $hMod)

GUIRegisterMsg($WM_NOTIFY, "WM_NOTIFY")
GUISetState(@SW_SHOW)



While Sleep(10)
WEnd




Func _KeyProc($nCode, $wParam, $lParam)
    If $nCode < 0 Then Return _WinAPI_CallNextHookEx($hHook, $nCode, $wParam, $lParam)
    Local $tKEYHOOKS = DllStructCreate($tagKBDLLHOOKSTRUCT, $lParam)

    Switch $wParam
        Case $WM_KEYDOWN
            Switch DllStructGetData($tKEYHOOKS, "vkCode")
                Case 162 ;CTRL L
                    $bCTRLKEYDOWN_L = True
                Case 163 ;CTRL R
                    $bCTRLKEYDOWN_R = True
            EndSwitch

        Case $WM_KEYUP
            Switch DllStructGetData($tKEYHOOKS, "vkCode")
                Case 162 ;CTRL L
                    $bCTRLKEYDOWN_L = False
                Case 163 ;CTRL R
                    $bCTRLKEYDOWN_R = False
            EndSwitch
    EndSwitch

    Return _WinAPI_CallNextHookEx($hHook, $nCode, $wParam, $lParam)
EndFunc   ;==>_KeyProc



Func WM_NOTIFY($hWnd, $iMsg, $wParam, $lParam)
    #forceref $hWnd, $iMsg, $wParam, $lParam

    Local $tInfo

    Local $tNMHDR = DllStructCreate($tagNMHDR, $lParam)
    Switch $tNMHDR.Code
        Case $LVN_KEYDOWN
            Switch $tNMHDR.IDFrom
                Case $cLV_Test, $cLV_Test2
                    $tInfo = DllStructCreate($tagNMLVKEYDOWN, $lParam)
                    Switch $tInfo.VKey
                        Case 0x41 ;A
                            If $bCTRLKEYDOWN_L Or $bCTRLKEYDOWN_R Then
                                ConsoleWrite("! Ctrl + A  LV:" & $tNMHDR.IDFrom & @CRLF)
                            EndIf

                        ;Case 0x41 ;A
                        ;    If _IsPressed("11") Then
                        ;        ConsoleWrite("! Ctrl + A  LV:" & $tNMHDR.IDFrom & @CRLF)
                        ;    EndIf

                    EndSwitch
            EndSwitch
    EndSwitch

    Return $GUI_RUNDEFMSG
EndFunc   ;==>WM_NOTIFY




Func _GUI_EVENT_CLOSE()
    _WinAPI_UnhookWindowsHookEx($hHook)
    DllCallbackFree($hKeyProc)
    Exit
EndFunc   ;==>_GUI_EVENT_CLOSE

Alles anzeigen

Beide Methoden fühlen sich jedoch nicht "elegant" an.

Spricht irgendwas gegen _IsPressed?

vielen Dank!

lgE

**eukalyptus**

Hallo!

Ich steh grad auf dem Schlauch u Google hilft mir auch nicht weiter!

Wie kann ich in einem ListView erkennen, wenn ein User "Ctrl+A" drückt?

AutoIt

#include <GUIConstantsEx.au3>
#include <WindowsConstants.au3>
#include <GUIListView.au3>

Opt("GUIOnEventMode", 1)

Global $hGui = GUICreate("Test", 320, 240)
GUISetOnEvent($GUI_EVENT_CLOSE, "_GUI_EVENT_CLOSE")

Global $cLV_Test = GUICtrlCreateListView("Name", 5, 5, 310, 230, BitOR($LVS_REPORT, $LVS_SHOWSELALWAYS))
For $i = 1 To 9
    _GUICtrlListView_AddItem($cLV_Test, "Item" & $i)
Next


GUIRegisterMsg($WM_NOTIFY, "WM_NOTIFY")
GUISetState(@SW_SHOW)



While Sleep(10)
WEnd



Func WM_NOTIFY($hWnd, $iMsg, $wParam, $lParam)
    #forceref $hWnd, $iMsg, $wParam, $lParam

    Local $tInfo, $iItem

    Local $tNMHDR = DllStructCreate($tagNMHDR, $lParam)
    Switch $tNMHDR.Code
        Case $LVN_KEYDOWN
            Switch $tNMHDR.IDFrom
                Case $cLV_Test
                    $tInfo = DllStructCreate($tagNMLVKEYDOWN, $lParam)
                    Switch $tInfo.VKey
                        Case 0x2E ;DEL key

                        Case Else
                            ConsoleWrite("! KEY DOWN: " & $tInfo.VKey & @CRLF)

                    EndSwitch

            EndSwitch
    EndSwitch

    Return $GUI_RUNDEFMSG
EndFunc   ;==>WM_NOTIFY




Func _GUI_EVENT_CLOSE()
    Exit
EndFunc

Alles anzeigen

"A" erkenne ich und "CTRL" auch...

Wie kann ich erkennen, ob "A" und "CTRL" gleichzeitig gedrück sind?

Vielen lieben Dank!

lgE

**eukalyptus**

Die Konstanten findest du in WinAPIConstants.au3, es gibt aber nicht viel Auswahl.

Du kannst eigene Icons hinzufügen:

AutoIt

#include <GUIConstantsEx.au3>
#include <GuiToolbar.au3>
#include <WinAPIConstants.au3>
#include <WindowsConstants.au3>
#include <GuiImageList.au3>


Global $g_hToolbar, $g_idMemo
Global $g_iItem ; Command identifier of the button associated with the notification.
Global Enum $e_idNew = 1000, $e_idOpen, $e_idSave, $e_idHelp, $e_idMein

Example()

Func Example()
    Local $hGUI, $aSize

    ; Create GUI
    $hGUI = GUICreate("Toolbar", 600, 400)
    $g_hToolbar = _GUICtrlToolbar_Create($hGUI)
    $aSize = _GUICtrlToolbar_GetMaxSize($g_hToolbar)

    $g_idMemo = GUICtrlCreateEdit("", 2, $aSize[1] + 20, 596, 396 - ($aSize[1] + 20), $WS_VSCROLL)
    GUICtrlSetFont($g_idMemo, 9, 400, 0, "Courier New")
    GUISetState(@SW_SHOW)
    GUIRegisterMsg($WM_NOTIFY, "_WM_NOTIFY")

    ; Add standard system bitmaps
    _GUICtrlToolbar_AddBitmap($g_hToolbar, 1, -1, $IDB_STD_LARGE_COLOR)

    Local $hImageList = _GUICtrlToolbar_GetImageList($g_hToolbar)
    _GUIImageList_AddIcon($hImageList, "MeinIcon.ico")
    _GUICtrlToolbar_SetImageList($g_hToolbar, $hImageList)

    ; Add buttons
    _GUICtrlToolbar_AddButton($g_hToolbar, $e_idNew, $STD_FILENEW)
    _GUICtrlToolbar_AddButton($g_hToolbar, $e_idOpen, $STD_FILEOPEN)
    _GUICtrlToolbar_AddButton($g_hToolbar, $e_idSave, $STD_FILESAVE)
    _GUICtrlToolbar_AddButtonSep($g_hToolbar)
    _GUICtrlToolbar_AddButton($g_hToolbar, $e_idHelp, $STD_HELP)
    _GUICtrlToolbar_AddButtonSep($g_hToolbar)
    _GUICtrlToolbar_AddButton($g_hToolbar, $e_idMein, 15)

    ; Loop until the user exits.
    Do
    Until GUIGetMsg() = $GUI_EVENT_CLOSE
EndFunc   ;==>Example

; Write message to memo
Func MemoWrite($sMessage = "")
    GUICtrlSetData($g_idMemo, $sMessage & @CRLF, 1)
EndFunc   ;==>MemoWrite

; WM_NOTIFY event handler
Func _WM_NOTIFY($hWndGUI, $iMsgID, $wParam, $lParam)
    #forceref $hWndGUI, $iMsgID, $wParam
    Local $tNMHDR, $hWndFrom, $iCode, $iNew, $iFlags, $iOld
    Local $tNMTBHOTITEM
    $tNMHDR = DllStructCreate($tagNMHDR, $lParam)
    $hWndFrom = DllStructGetData($tNMHDR, "hWndFrom")
    $iCode = DllStructGetData($tNMHDR, "Code")
    Switch $hWndFrom
        Case $g_hToolbar
            Switch $iCode
                Case $NM_LDOWN
                    ;----------------------------------------------------------------------------------------------
                    MemoWrite("$NM_LDOWN: Clicked Item: " & $g_iItem & " at index: " & _GUICtrlToolbar_CommandToIndex($g_hToolbar, $g_iItem))
                    ;----------------------------------------------------------------------------------------------
                Case $TBN_HOTITEMCHANGE
                    $tNMTBHOTITEM = DllStructCreate($tagNMTBHOTITEM, $lParam)
                    $iOld = DllStructGetData($tNMTBHOTITEM, "idOld")
                    $iNew = DllStructGetData($tNMTBHOTITEM, "idNew")
                    $g_iItem = $iNew
                    $iFlags = DllStructGetData($tNMTBHOTITEM, "dwFlags")
                    If BitAND($iFlags, $HICF_LEAVING) = $HICF_LEAVING Then
                        MemoWrite("$HICF_LEAVING: " & $iOld)
                    Else
                        Switch $iNew
                            Case $e_idNew
                                ;----------------------------------------------------------------------------------------------
                                MemoWrite("$TBN_HOTITEMCHANGE: $e_idNew")
                                ;----------------------------------------------------------------------------------------------
                            Case $e_idOpen
                                ;----------------------------------------------------------------------------------------------
                                MemoWrite("$TBN_HOTITEMCHANGE: $e_idOpen")
                                ;----------------------------------------------------------------------------------------------
                            Case $e_idSave
                                ;----------------------------------------------------------------------------------------------
                                MemoWrite("$TBN_HOTITEMCHANGE: $e_idSave")
                                ;----------------------------------------------------------------------------------------------
                            Case $e_idHelp
                                ;----------------------------------------------------------------------------------------------
                                MemoWrite("$TBN_HOTITEMCHANGE: $idHelp")
                                ;----------------------------------------------------------------------------------------------
                        EndSwitch
                    EndIf
            EndSwitch
    EndSwitch
    Return $GUI_RUNDEFMSG
EndFunc   ;==>_WM_NOTIFY

Alles anzeigen

Oder schau dir das Beispiel zu _GUICtrlToolbar_LoadBitmap an

lgE

**eukalyptus**

Hallo

Du kannst z.B. GuiEventMode umschalten

AutoIt

#include <GUIConstantsEx.au3>


Opt("GUIOnEventMode", 1)


Global $hGui_Main = GUICreate("Main")
GUISetOnEvent($GUI_EVENT_CLOSE, "_Exit")
Global $cBT_Settings = GUICtrlCreateButton("Settings", 10, 10)
GUICtrlSetOnEvent(-1, "_Settings")
Global $cBT_Test = GUICtrlCreateButton("Test", 10, 40)
GUICtrlSetOnEvent(-1, "_Test")
GUISetState(@SW_SHOW)


While Sleep(10)
WEnd


Func _Settings()
    Local $iEventMode = Opt("GUIOnEventMode", 0)

    Local $hGui_Child = GUICreate("Settings", 200, 100, -1, -1, -1, -1, $hGui_Main)
    Local $cBT_OK = GUICtrlCreateButton("OK", 10, 10)
    GUISetState(@SW_SHOW)

    Local $iMsg
    While True
        $iMsg = GUIGetMsg()
        Switch $iMsg
            Case $cBT_OK
                MsgBox(0, "OK", "OK")
                ExitLoop

            Case $GUI_EVENT_CLOSE
                ExitLoop
        EndSwitch
    WEnd

    GUIDelete($hGui_Child)

    Opt("GUIOnEventMode", $iEventMode)
EndFunc


Func _Test()
    MsgBox(0, "Test", "Test")
EndFunc


Func _Exit()
    Exit
EndFunc

Alles anzeigen

lgE

**eukalyptus**

Hallo!

Ich bin mit XMLDOM immer besser gefahren, als mit selber erstellten XML-Strings.

Und auch mit WinHTTP hatte ich immer weniger Probleme, als TCP-Send

Probiers mal auf diese Weise:

AutoIt

#include <Date.au3>


Global $oERR = ObjEvent("AutoIt.Error", "_ErrFunc")
Func _ErrFunc($oERR)
    ConsoleWrite("! We intercepted a COM Error !" & @CRLF & _
            "Number: 0x" & Hex($oERR.number, 8) & @CRLF & _
            "Description: " & $oERR.description & _
            "At line: " & $oERR.scriptline & @CRLF)
    SetError(1)
EndFunc   ;==>_ErrFunc



Global $oWHttp = ObjCreate("Winhttp.winhttprequest.5.1")


Global $oXML = _CreateMSG()
_SendMSG($oXML)



Func _SendMSG($oXML)
    If Not IsObj($oXML) Then Return
    $oWHttp.Open("POST", "http://" & $LisaIP & ":" & $LisaPORT, 0)

    $oWHttp.setRequestHeader("Content-Type", "text/xml")
    $oWHttp.setRequestHeader("Connection", "Keep-Alive")

    $oWHttp.Send($oXML.xml)
    If @error Then Return SetError(1, 1, False)

    Switch $oWHttp.WaitForResponse(2)
        Case True
            Switch $oWHttp.Status()
                Case 200 ;OK
                    ConsoleWrite("+ $oWHttp.Status OK " & @CRLF)
                    Return $oWHttp.Responsetext()

                Case Else
                    ConsoleWrite("! HTTP Status: " & $oWHttp.Status() & @CRLF)

            EndSwitch

        Case Else
            ConsoleWrite("! $oWHttp.TimeOut " & @CRLF)

    EndSwitch
EndFunc   ;==>_SendMSG







Func _CreateMSG()
    Local $oXML = ObjCreate("Microsoft.XMLDOM")
    If Not IsObj($oXML) Then Return SetError(1, 1, False)

    Local $oPI = $oXML.createProcessingInstruction("xml", "version=""1.0""")
    $oXML.appendChild($oPI)



    Local $oLISA = $oXML.createElement("LISA")
    $oXML.documentElement = $oLISA

    Local $oChild = $oXML.createElement("VERSION")
    $oChild.Text = "5.8"
    $oLISA.appendChild($oChild)

    $oChild = $oXML.createElement("MEDIUM")
    $oChild.Text = "12"
    $oLISA.appendChild($oChild)

    $oChild = $oXML.createElement("KANAL")
    $oChild.Text = "610"
    $oLISA.appendChild($oChild)

    $oChild = $oXML.createElement("SENDER")
    $oChild.Text = "192.168.1.73"
    $oLISA.appendChild($oChild)

    $oChild = $oXML.createElement("ENTSTEHUNG")
    $oChild.Text = _NowDate() & " " & _NowTime(3) & "Uhr"
    $oLISA.appendChild($oChild)



    Local $oVERBINDUNGSMELDUNG = $oXML.createElement("VERBINDUNGSMELDUNG")
    $oLISA.appendChild($oVERBINDUNGSMELDUNG)

    $oChild = $oXML.createElement("Identnummer")
    $oChild.Text = "1111"
    $oVERBINDUNGSMELDUNG.appendChild($oChild)

    $oChild = $oXML.createElement("Ereignis")
    $oChild.Text = "ROUTINE"
    $oVERBINDUNGSMELDUNG.appendChild($oChild)



    $oVERBINDUNGSMELDUNG = $oXML.createElement("VERBINDUNGSMELDUNG")
    $oLISA.appendChild($oVERBINDUNGSMELDUNG)

    $oChild = $oXML.createElement("Identnummer")
    $oChild.Text = "1111"
    $oVERBINDUNGSMELDUNG.appendChild($oChild)

    $oChild = $oXML.createElement("Ereignis")
    $oChild.Text = "ROUTINE"
    $oVERBINDUNGSMELDUNG.appendChild($oChild)


    ;$oXML.save(@ScriptDir & "\test.xml")

    Return $oXML
EndFunc   ;==>_CreateMSG

Alles anzeigen

Etwas übersichtlicher wirds natürlich, wenn du dir eine Helperfunktion bastelst, welche die XML-Elemente in einer Zeile erstellt...

EDIT: Zum betrachten $oXML-save und mit einem XML-Editor (Internet Explorer reicht ;)) öffnen (XML-String ist SingleLine)

lgE

**eukalyptus**

Vielen Dank für die Antworten!

Array als Map`s abzubilden muss ich mir definitiv mal ansehen!

Für ein paar Fälle kann ich das Array als Struct anlegen und schreibe dann via DllStructSetData.

Für den Rest eine Helperfunktion wie in JSON, aber glücklicherweise hab ich nur 2 dimensionale Arrays!

**eukalyptus**

Hallo!

Kennt jemand hierfür eine halbwegs "elegante" Möglichkeit?

AutoIt

;#AutoIt3Wrapper_Run_Au3Check=N

Global $aA[1], $mM[]

$aA[0] = 1111
$mM[1] = $aA
$aA = Null

ConsoleWrite("> " & ($mM[1])[0] & @CRLF)

($mM[1])[0] = 2222 ;geht nicht

;$aA = $mM[1]
;$aA[0] = 2222
;$mM[1] = $aA

ConsoleWrite("> " & ($mM[1])[0] & @CRLF)

Alles anzeigen

Vielen Dank!

E

**eukalyptus**

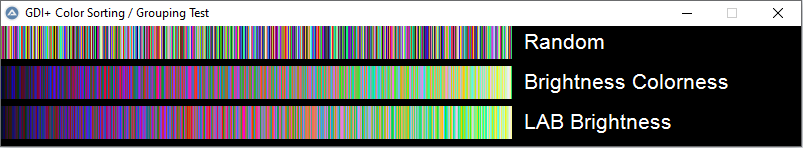

Noch ein Versuch:

AutoIt

;Coded by UEZ build 2023-03-16
#include <Array.au3>
#include <GDIPlus.au3>
#include <GUIConstantsEx.au3>
#include <WindowsConstants.au3>
_GDIPlus_Startup()

Global $hGUI = GUICreate("GDI+ Color Sorting / Grouping Test", 800, 120); 520)
GUISetState()
Global $hGraphic = _GDIPlus_GraphicsCreateFromHWND($hGUI)
Global $hPen = _GDIPlus_PenCreate(0)
_GDIPlus_GraphicsClear($hGraphic)
SRandom(80)

Global $aColortable[511], $i, $y = 0
For $i = 0 To UBound($aColortable) - 1
  $aColortable[$i] = Int(Random() * 0x1000000)
Next

; For $i = 0 To UBound($aColortable) - 1
;   Do
;     $iColor = Int(Random() * 0xFFFFFF)
;     $a = RGB2HSV($iColor)
;   Until $a[2] > 0.98 And $a[1] > 0.98
;   $aColortable[$i] = $iColor
; Next

DrawColors($y, "Random")

; _ArraySort($aColortable)
; $y += 40
; DrawColors($y, "Default Array Sort")

; SortByCMYK($aColortable)
; $y += 40
; DrawColors($y, "CMYK")

; SortByLum($aColortable)
; $y += 40
; DrawColors($y, "Luminosity")

; SortByDistance($aColortable)
; $y += 40
; DrawColors($y, "Distance")

; SortByHSL($aColortable)
; $y += 40
; DrawColors($y, "HSL by L")

; SortByHSV($aColortable)
; $y += 40
; DrawColors($y, "HSV by V")

; SortByHSL($aColortable, 1)
; $y += 40
; DrawColors($y, "HSL / HSV by H")

; SortByHSL2($aColortable)
; $y += 40
; DrawColors($y, "HSV 2")

; SortByGroupingHSL($aColortable)
; $y += 40
; DrawColors($y, "Grouping HSL by dist.")

; SortByGroupingHSV($aColortable)
; $y += 40
; DrawColors($y, "Grouping HSV by LAB")

; SortByLAB($aColortable)
; $y += 40
; DrawColors($y, "LAB")

SortByBrightColor($aColortable)
$y += 40
DrawColors($y, "Brightness Colorness")


SortByLAB_Brightness($aColortable)
$y += 40
DrawColors($y, "LAB Brightness")

While GUIGetMsg() <> $GUI_EVENT_CLOSE
  Sleep(10)
WEnd

_GDIPlus_PenDispose($hPen)
_GDIPlus_GraphicsDispose($hGraphic)
_GDIPlus_Shutdown()
GUIDelete()
Exit

Func DrawColors($y, $txt = 0, $array = $aColortable)
  If UBound($array, 2) Then
    For $i = 0 To UBound($array) - 1
      _GDIPlus_PenSetColor($hPen, BitOR(0xFF000000, $array[$i][0]))
      _GDIPlus_GraphicsDrawLine($hGraphic, $i, $y, $i, $y + 32, $hPen)
    Next
  Else
    For $i = 0 To UBound($array) - 1
      _GDIPlus_PenSetColor($hPen, BitOR(0xFF000000, $array[$i]))
      _GDIPlus_GraphicsDrawLine($hGraphic, $i, $y, $i, $y + 32, $hPen)
    Next
  EndIf
  If $txt Then _GDIPlus_GraphicsDrawString($hGraphic, $txt, $i + 8, $y + 4, "Arial", 16, Default, 0xFFFFFFFF)
EndFunc

Func SortByCMYK(ByRef $aColortable) ;http://www.easyrgb.com/en/math.php
  Local $aColortable2[UBound($aColortable)][6]
  Local $a, $i
  For $i = 0 To UBound($aColortable) - 1
    $a = RGA2CMYK($aColortable[$i])
    $aColortable2[$i][0] = $aColortable[$i]
    $aColortable2[$i][1] = $a[0] ;C
    $aColortable2[$i][2] = $a[1] ;M
    $aColortable2[$i][3] = $a[2] ;Y
    $aColortable2[$i][4] = $a[3] ;K
    $aColortable2[$i][5] = Sqrt($a[0] ^ 2 + $a[1] ^ 2 + $a[2] ^ 2 + $a[3] ^ 2)
  Next
  Local $aSort[] = [5, 3]
  _ArraySort_MultiColumn($aColortable2, $aSort, 1, 0)
  For $i = 0 To UBound($aColortable2) - 1
    $aColortable[$i] = $aColortable2[$i][0]
  Next
  Dim $aColortable2[0]
EndFunc

Func SortByLum(ByRef $aColortable)
  Local $aColortable2[UBound($aColortable)][4], $a, $i, $r, $g, $b, $lum, $h2, $lum2, $v2, $repetitions = 1
  For $i = 0 To UBound($aColortable) - 1
    $r = BitShift(BitAND($aColortable[$i], 0xFF0000), 16)
    $g = BitShift(BitAND($aColortable[$i], 0xFF00), 8)
    $b = BitAND($aColortable[$i], 0xFF)
    $lum = Sqrt(0.241 * $r + 0.691 * $g + 0.068 * $b)
    $a = RGB2HSV($aColortable[$i])
    $h2 = Int($a[0] * $repetitions)
    $lum2 = Int($lum * $repetitions)
    $v2 = Int($a[2] * $repetitions)
;~         If Mod($h2, 2) = 1 Then
;~             $v2 = $repetitions - $v2
;~             $lum2 = $repetitions - $lum
;~         EndIf
    $aColortable2[$i][0] = $aColortable[$i]
    $aColortable2[$i][1] = $h2 ;H
    $aColortable2[$i][2] = $lum2 ;S
    $aColortable2[$i][3] = $v2 ;V
  Next
;~     Local $aSort[] = [2, 3]
;~     _ArraySort_MultiColumn($aColortable2, $aSort, 0, 0)
;~     DrawColors(96, "Test", $aColortable2)
  Local $aSort2[][] = [[2, 0], [3, 0]]
  _ArrayMultiColSort($aColortable2, $aSort2)
  For $i = 0 To UBound($aColortable2) - 1
    $aColortable[$i] = $aColortable2[$i][0]
  Next
  Dim $aColortable2[0]
EndFunc





Func SortByLAB_Brightness(ByRef $aColortable)
    Local $iDim = UBound($aColortable)
    Local $aLAB[$iDim][4], $aTmp

    For $i = 0 To $iDim - 1
        $aTmp = _RGB2LAB($aColortable[$i])
        $aLAB[$i][0] = $aTmp[0]
        $aLAB[$i][1] = $aTmp[1]
        $aLAB[$i][2] = $aTmp[2]
        $aLAB[$i][3] = $i
    Next

    _ArraySort($aLAB, 0, 0, 0, 0)

    $aTmp = $aColortable
    For $i = 0 To $iDim - 1
        $aColortable[$i] = $aTmp[$aLAB[$i][3]]
    Next

EndFunc






Func SortByLAB(ByRef $aColortable, $iStartRGB = 0) ;by eukalyptus
  Local $iDim = UBound($aColortable), $iDim2 = UBound($aColortable, 2)
  Local $aLAB[$iDim][2], $i

  If $iDim2 Then
    For $i = 0 To $iDim - 1
      $aLAB[$i][0] = _RGB2LAB($aColortable[$i][0])
    Next
  Else
    For $i = 0 To $iDim - 1
      $aLAB[$i][0] = _RGB2LAB($aColortable[$i])
    Next
  EndIf

  Local $aLastLAB = _RGB2LAB($iStartRGB)

  Local $aSort[$iDim], $fD, $fMin, $iIdx
  For $i = 0 To $iDim - 1
    $fMin = 2 ^ 32
    $iIdx = -1
    For $j = 0 To $iDim - 1
      If $aLAB[$j][1] Then ContinueLoop
      $fD = Sqrt((($aLAB[$j][0])[0] - $aLastLAB[0]) ^ 2 + (($aLAB[$j][0])[1] - $aLastLAB[1]) ^ 2 + (($aLAB[$j][0])[2] - $aLastLAB[2]) ^ 2)
      If $fD < $fMin Then
        $fMin = $fD
        $iIdx = $j
      EndIf
    Next
    $aSort[$i] = $iIdx
    $aLastLAB = $aLAB[$iIdx][0]
    $aLAB[$iIdx][1] = True
  Next

  $aTmp = $aColortable
  For $i = 0 To $iDim - 1
    If $iDim2 Then
      $aColortable[$i][0] = $aTmp[$aSort[$i]][0]
    Else
      $aColortable[$i] = $aTmp[$aSort[$i]]
    EndIf
  Next
EndFunc

Func _RGB2LAB($iRGB) ;by eukalyptus
  Local $aRGB[3], $i
  $aRGB[0] = BitAND(BitShift($iRGB, 16), 0xFF) / 255
  $aRGB[1] = BitAND(BitShift($iRGB, 8), 0xFF) / 255
  $aRGB[2] = BitAND($iRGB, 0xFF) / 255

  For $i = 0 To 2
    If $aRGB[$i] > 0.04045 Then
      $aRGB[$i] = (($aRGB[$i] + 0.055) / 1.055) ^ 2.4
    Else
      $aRGB[$i] = $aRGB[$i] / 12.92
    EndIf
    $aRGB[$i] *= 100
  Next

  Local $aXYZ[3]
  $aXYZ[0] = ($aRGB[0] * 0.4124 + $aRGB[1] * 0.3576 + $aRGB[2] * 0.1805) / 95.047
  $aXYZ[1] = ($aRGB[0] * 0.2126 + $aRGB[1] * 0.7152 + $aRGB[2] * 0.0722) / 100.0
  $aXYZ[2] = ($aRGB[0] * 0.0193 + $aRGB[1] * 0.1192 + $aRGB[2] * 0.9505) / 108.883

  For $i = 0 To 2
    If $aXYZ[$i] > 0.008856 Then
      $aXYZ[$i] = $aXYZ[$i] ^ 0.3333333333333333
    Else
      $aXYZ[$i] = (7.787 * $aXYZ[$i]) + (16 / 116)
    EndIf
  Next

  Local $aLAB[3]
  $aLAB[0] = (116 * $aXYZ[1]) - 16
  $aLAB[1] = 500 * ($aXYZ[0] - $aXYZ[1])
  $aLAB[2] = 200 * ($aXYZ[1] - $aXYZ[2])

  Return $aLAB
EndFunc

Func SortByDistance(ByRef $aColortable, $iDir = 0)
  Local $i, $aTmp[2], $swapped
  If $iDir = 0 Then ;sort ascending
    If UBound($aColortable, 2) Then
      Do ;bubblesort -> slow!
        $swapped = 0
        For $i = 0 To UBound($aColortable) - 2
          Distance($aColortable[$i][0], $aColortable[$i + 1][0])
          If @extended Then
            $aTmp[0] = $aColortable[$i][0]
            $aColortable[$i][0] = $aColortable[$i + 1][0]
            $aColortable[$i + 1][0] = $aTmp[0]
            $swapped = 1
          EndIf
        Next
      Until $swapped = 0
    Else
      Do ;bubblesort -> slow!
        $swapped = 0
        For $i = 0 To UBound($aColortable) - 2
          Distance($aColortable[$i], $aColortable[$i + 1])
          If @extended Then
            $aTmp[0] = $aColortable[$i]
            $aColortable[$i] = $aColortable[$i + 1]
            $aColortable[$i + 1] = $aTmp[0]
            $swapped = 1
          EndIf
        Next
      Until $swapped = 0
    EndIf
  Else ;sort descending
    If UBound($aColortable, 2) Then
      Do ;bubblesort -> slow!
        $swapped = 0
        For $i = UBound($aColortable) - 1 To 1 Step -1
          Distance($aColortable[$i][0], $aColortable[$i - 1][0])
          If @extended Then
            $aTmp[0] = $aColortable[$i][0]
            $aColortable[$i][0] = $aColortable[$i - 1][0]
            $aColortable[$i - 1][0] = $aTmp[0]
            $swapped = 1
          EndIf
        Next
      Until $swapped = 0
    Else
      Do ;bubblesort -> slow!
        $swapped = 0
        For $i = UBound($aColortable) - 1 To 1 Step -1
          Distance($aColortable[$i], $aColortable[$i - 1])
          If @extended Then
            $aTmp[0] = $aColortable[$i]
            $aColortable[$i] = $aColortable[$i - 1]
            $aColortable[$i - 1] = $aTmp[0]
            $swapped = 1
          EndIf
        Next
      Until $swapped = 0
    EndIf
  EndIf
EndFunc

Func SortByHSL(ByRef $aColortable, $sc = 3)
  Local $aColortable2[UBound($aColortable)][5]
  Local $a, $i
  For $i = 0 To UBound($aColortable) - 1
    $a = RGB2HSL($aColortable[$i])
    $aColortable2[$i][0] = $aColortable[$i]
    $aColortable2[$i][1] = $a[0] ;H
    $aColortable2[$i][2] = $a[1] ;S
    $aColortable2[$i][3] = $a[2] ;L
    $aColortable2[$i][4] = Sqrt($a[0] ^ 2 + $a[1] ^ 4 + $a[2] ^ 8) ;Sqrt(($a[0] / 360) ^ 2 + $a[1] ^ 2 + $a[2] ^ 2)
  Next
  $sc = Max(Min($sc, 4), 1)
  _ArraySort($aColortable2, 0, 0, 0, $sc)
  For $i = 0 To UBound($aColortable2) - 1
    $aColortable[$i] = $aColortable2[$i][0]
  Next
  Dim $aColortable2[0]
EndFunc

Func SortByHSV(ByRef $aColortable, $sc = 3)
  Local $aColortable2[UBound($aColortable)][4]
  Local $a, $i
  For $i = 0 To UBound($aColortable) - 1
    $a = RGB2HSV($aColortable[$i])
    $aColortable2[$i][0] = $aColortable[$i]
    $aColortable2[$i][1] = $a[0]
    $aColortable2[$i][2] = $a[1]
    $aColortable2[$i][3] = $a[2]
  Next
  $sc = Max(Min($sc, 3), 1)
  _ArraySort($aColortable2, 0, 0, 0, $sc)
  For $i = 0 To UBound($aColortable2) - 1
    $aColortable[$i] = $aColortable2[$i][0]
  Next
  Dim $aColortable2[0]
EndFunc

Func SortByGroupingHSL(ByRef $aColortable, $sc = 2, $sortmode = 2)
  Local $red[0][2], $orange[0][2], $yellow[0][2], $lime[0][2], $green[0][2], $turqoise[0][2], $cyan[0][2], $cobalt[0][2], $blue[0][2], $violet[0][2], $magenta[0][2], $crimson[0][2], $grey[0][2], $i, $j, $col
  $sc = Max(Min($sc, 2), 0)
  For $i = 0 To UBound($aColortable) - 1
    $col = $aColortable[$i]
    Switch RGBtoColorGroup($col)
      Case "red"
        _ArrayAdd($red, $aColortable[$i] & "|" & RGB2HSL($col)[$sc])
      Case "orange"
        _ArrayAdd($orange, $aColortable[$i] & "|" & RGB2HSL($col)[$sc])
      Case "yellow"
        _ArrayAdd($yellow, $aColortable[$i] & "|" & RGB2HSL($col)[$sc])
      Case "lime"
        _ArrayAdd($lime, $aColortable[$i] & "|" & RGB2HSL($col)[$sc])
      Case "green"
        _ArrayAdd($green, $aColortable[$i] & "|" & RGB2HSL($col)[$sc])
      Case "turqoise"
        _ArrayAdd($turqoise, $aColortable[$i] & "|" & RGB2HSL($col)[$sc])
      Case "cyan"
        _ArrayAdd($cyan, $aColortable[$i] & "|" & RGB2HSL($col)[$sc])
      Case "cobalt"
        _ArrayAdd($cobalt, $aColortable[$i] & "|" & RGB2HSL($col)[$sc])
      Case "blue"
        _ArrayAdd($blue, $aColortable[$i] & "|" & RGB2HSL($col)[$sc])
      Case "violet"
        _ArrayAdd($violet, $aColortable[$i] & "|" & RGB2HSL($col)[$sc])
      Case "magenta"
        _ArrayAdd($magenta, $aColortable[$i] & "|" & RGB2HSL($col)[$sc])
      Case "crimson"
        _ArrayAdd($crimson, $aColortable[$i] & "|" & RGB2HSL($col)[$sc])
      Case "grey"
        _ArrayAdd($grey, $aColortable[$i] & "|" & RGB2HSL($col)[$sc])
    EndSwitch
  Next
  $sortmode = Max(Min($sortmode, 2), 1)
  Switch $sortmode
    Case 1
      _ArraySort($red, 0, 0, 0, 1)
      _ArraySort($orange, 0, 0, 0, 1)
      _ArraySort($yellow, 0, 0, 0, 1)
      _ArraySort($lime, 0, 0, 0, 1)
      _ArraySort($green, 0, 0, 0, 1)
      _ArraySort($turqoise, 0, 0, 0, 1)
      _ArraySort($cyan, 0, 0, 0, 1)
      _ArraySort($cobalt, 0, 0, 0, 1)
      _ArraySort($blue, 0, 0, 0, 1)
      _ArraySort($violet, 0, 0, 0, 1)
      _ArraySort($magenta, 0, 0, 0, 1)
      _ArraySort($crimson, 0, 0, 0, 1)
      _ArraySort($grey, 0, 0, 0, 1)
    Case 2
      SortByDistance($red, 1)
      SortByDistance($orange)
      SortByDistance($yellow, 1)
      SortByDistance($lime)
      SortByDistance($green, 1)
      SortByDistance($turqoise)
      SortByDistance($cyan, 1)
      SortByDistance($cobalt)
      SortByDistance($blue, 1)
      SortByDistance($violet)
      SortByDistance($magenta, 1)
      SortByDistance($crimson)
      SortByDistance($grey, 1)
  EndSwitch
  $i = 0
  For $j = 0 To UBound($crimson) - 1
    $aColortable[$i] = $crimson[$j][0]
    $i += 1
  Next
  For $j = 0 To UBound($red) - 1
    $aColortable[$i] = $red[$j][0]
    $i += 1
  Next
  For $j = 0 To UBound($orange) - 1
    $aColortable[$i] = $orange[$j][0]
    $i += 1
  Next
  For $j = 0 To UBound($yellow) - 1
    $aColortable[$i] = $yellow[$j][0]
    $i += 1
  Next
  For $j = 0 To UBound($lime) - 1
    $aColortable[$i] = $lime[$j][0]
    $i += 1
  Next
  For $j = 0 To UBound($green) - 1
    $aColortable[$i] = $green[$j][0]
    $i += 1
  Next
  For $j = 0 To UBound($turqoise) - 1
    $aColortable[$i] = $turqoise[$j][0]
    $i += 1
  Next
  For $j = 0 To UBound($cyan) - 1
    $aColortable[$i] = $cyan[$j][0]
    $i += 1
  Next
  For $j = 0 To UBound($cobalt) - 1
    $aColortable[$i] = $cobalt[$j][0]
    $i += 1
  Next
  For $j = 0 To UBound($blue) - 1
    $aColortable[$i] = $blue[$j][0]
    $i += 1
  Next
  For $j = 0 To UBound($violet) - 1
    $aColortable[$i] = $violet[$j][0]
    $i += 1
  Next
  For $j = 0 To UBound($magenta) - 1
    $aColortable[$i] = $magenta[$j][0]
    $i += 1
  Next
  For $j = 0 To UBound($grey) - 1
    $aColortable[$i] = $grey[$j][0]
    $i += 1
  Next
EndFunc

Func SortByGroupingHSV(ByRef $aColortable, $sc = 2, $sortmode = 3)
  Local $red[0][2], $orange[0][2], $yellow[0][2], $lime[0][2], $green[0][2], $turqoise[0][2], $cyan[0][2], $cobalt[0][2], $blue[0][2], $violet[0][2], $magenta[0][2], $crimson[0][2], $grey[0][2], $i, $j, $col
  $sc = Max(Min($sc, 2), 0)
  For $i = 0 To UBound($aColortable) - 1
    $col = $aColortable[$i]
    Switch RGBtoColorGroup($col)
      Case "red"
        _ArrayAdd($red, $aColortable[$i] & "|" & RGB2HSV($col)[$sc])
      Case "orange"
        _ArrayAdd($orange, $aColortable[$i] & "|" & RGB2HSV($col)[$sc])
      Case "yellow"
        _ArrayAdd($yellow, $aColortable[$i] & "|" & RGB2HSV($col)[$sc])
      Case "lime"
        _ArrayAdd($lime, $aColortable[$i] & "|" & RGB2HSV($col)[$sc])
      Case "green"
        _ArrayAdd($green, $aColortable[$i] & "|" & RGB2HSV($col)[$sc])
      Case "turqoise"
        _ArrayAdd($turqoise, $aColortable[$i] & "|" & RGB2HSV($col)[$sc])
      Case "cyan"
        _ArrayAdd($cyan, $aColortable[$i] & "|" & RGB2HSV($col)[$sc])
      Case "cobalt"
        _ArrayAdd($cobalt, $aColortable[$i] & "|" & RGB2HSV($col)[$sc])
      Case "blue"
        _ArrayAdd($blue, $aColortable[$i] & "|" & RGB2HSV($col)[$sc])
      Case "violet"
        _ArrayAdd($violet, $aColortable[$i] & "|" & RGB2HSV($col)[$sc])
      Case "magenta"
        _ArrayAdd($magenta, $aColortable[$i] & "|" & RGB2HSV($col)[$sc])
      Case "crimson"
        _ArrayAdd($crimson, $aColortable[$i] & "|" & RGB2HSV($col)[$sc])
      Case "grey"
        _ArrayAdd($grey, $aColortable[$i] & "|" & RGB2HSV($col)[$sc])
    EndSwitch
  Next
  $sortmode = Max(Min($sortmode, 3), 1)
  Switch $sortmode
    Case 1
      _ArraySort($red, 0, 0, 0, 1)
      _ArraySort($orange, 0, 0, 0, 1)
      _ArraySort($yellow, 0, 0, 0, 1)
      _ArraySort($lime, 0, 0, 0, 1)
      _ArraySort($green, 0, 0, 0, 1)
      _ArraySort($turqoise, 0, 0, 0, 1)
      _ArraySort($cyan, 0, 0, 0, 1)
      _ArraySort($cobalt, 0, 0, 0, 1)
      _ArraySort($blue, 0, 0, 0, 1)
      _ArraySort($violet, 0, 0, 0, 1)
      _ArraySort($magenta, 0, 0, 0, 1)
      _ArraySort($crimson, 0, 0, 0, 1)
      _ArraySort($grey, 0, 0, 0, 1)
    Case 2
      SortByDistance($red, 1)
      SortByDistance($orange)
      SortByDistance($yellow, 1)
      SortByDistance($lime)
      SortByDistance($green, 1)
      SortByDistance($turqoise)
      SortByDistance($cyan, 1)
      SortByDistance($cobalt)
      SortByDistance($blue, 1)
      SortByDistance($violet)
      SortByDistance($magenta, 1)
      SortByDistance($crimson)
      SortByDistance($grey, 1)
    Case 3
      SortByLAB($red)
      SortByLAB($orange)
      SortByLAB($yellow)
      SortByLAB($lime)
      SortByLAB($green)
      SortByLAB($turqoise)
      SortByLAB($cyan)
      SortByLAB($cobalt)
      SortByLAB($blue)
      SortByLAB($violet)
      SortByLAB($magenta)
      SortByLAB($crimson)
      SortByLAB($grey)
  EndSwitch
  $i = 0
  For $j = 0 To UBound($red) - 1
    $aColortable[$i] = $red[$j][0]
    $i += 1
  Next
  For $j = 0 To UBound($orange) - 1
    $aColortable[$i] = $orange[$j][0]
    $i += 1
  Next
  For $j = 0 To UBound($yellow) - 1
    $aColortable[$i] = $yellow[$j][0]
    $i += 1
  Next
  For $j = 0 To UBound($lime) - 1
    $aColortable[$i] = $lime[$j][0]
    $i += 1
  Next
  For $j = 0 To UBound($green) - 1
    $aColortable[$i] = $green[$j][0]
    $i += 1
  Next
  For $j = 0 To UBound($turqoise) - 1
    $aColortable[$i] = $turqoise[$j][0]
    $i += 1
  Next
  For $j = 0 To UBound($cyan) - 1
    $aColortable[$i] = $cyan[$j][0]
    $i += 1
  Next
  For $j = 0 To UBound($cobalt) - 1
    $aColortable[$i] = $cobalt[$j][0]
    $i += 1
  Next
  For $j = 0 To UBound($blue) - 1
    $aColortable[$i] = $blue[$j][0]
    $i += 1
  Next
  For $j = 0 To UBound($violet) - 1
    $aColortable[$i] = $violet[$j][0]
    $i += 1
  Next
  For $j = 0 To UBound($magenta) - 1
    $aColortable[$i] = $magenta[$j][0]
    $i += 1
  Next
  For $j = 0 To UBound($crimson) - 1
    $aColortable[$i] = $crimson[$j][0]
    $i += 1
  Next
  For $j = 0 To UBound($grey) - 1
    $aColortable[$i] = $grey[$j][0]
    $i += 1
  Next
EndFunc

Func SortByHSL2(ByRef $aColortable) ;by Mars
  Local $aColortable2[UBound($aColortable)][9]
  Local $a, $i, $hsl_
  For $i = 0 To UBound($aColortable) - 1
    $a = _RGB2LAB($aColortable[$i])
    $hsl_ = RGB2HSL($aColortable[$i])
    $aColortable2[$i][0] = $aColortable[$i]
    $aColortable2[$i][1] = $a[0] ; LAB -> L
    $aColortable2[$i][2] = Sqrt($a[1]^2 + $a[2]^2) ; chroma
    $aColortable2[$i][3] = Abs($a[0] - 50) ; L umformen um "hell und dunkel" rauszufiltern
    $aColortable2[$i][4] = $hsl_[0] ; HSL -> H (könnte man via Farbwinkel aus LAB auch machen, hab ich ausprobiert, sah nicht so schön aus)
  Next
  Local $10 = Int(UBound($aColortable)/10)
  _ArraySort($aColortable2, 0, 0, 0, 2) ; chroma -> ziemlich "unbunte" farben herausfiltern (10%)
  _ArraySort($aColortable2, 1, 1 * $10 + 1, 0 * $10, 3) ; abs(L-50) -> sehr helle und sehr dunkle Farben herausfiltern
  _ArraySort($aColortable2, 0, 1 * $10 + 1, 5 * $10, 2) ; chroma -> von den hellen und dunklen Farben die unbuntesten raussuchen (nochmal 10%)
  _ArraySort($aColortable2, 0, 0 * $10 + 0, 2 * $10, 1) ; Die packt man links an das erste 5tel als eine Art "Pseudograustufenliste" (darin sind 20% aller Farben)
  _ArraySort($aColortable2, 0, 2 * $10 + 1, 0 * $10, 1) ; L -> sortiere nach Helligkeit
  _ArraySort($aColortable2, 0, 2 * $10 + 1, 6 * $10, 4) ; H -> Sortiere nach Hue (1x für niedrige Helligkeit)
  _ArraySort($aColortable2, 1, 6 * $10 + 1, 0 * $10, 4) ; H -> Sortiere nach Hue (1x für hohe Helligkeit)
  For $i = 0 To UBound($aColortable2) - 1
    $aColortable[$i] = $aColortable2[$i][0]
  Next
  Dim $aColortable2[0]
EndFunc

Func RGBtoColorGroup($iColor)
  Local $HSL = RGB2HSL($iColor), $H, $r
  If $HSL[0] = 0 And $HSL[1] = 0 Then
    $H = -1
  Else
    $H = $HSL[0]
  EndIf
  Switch Round($H, 0)
    Case 0 To 14, 345 To 359
      Return "red"
    Case 15 To 44
      Return "orange"
    Case 45 To 74
      Return "yellow"
    Case 75 To 104
      Return "lime"
    Case 105 To 134
      Return "green"
    Case 135 To 164
      Return "turqoise"
    Case 165 To 194
      Return "cyan"
    Case 195 To 224
      Return "cobalt"
    Case 225 To 254
      Return "blue"
    Case 255 To 284
      Return "violet"
    Case 285 To 314
      Return "magenta"
    Case 315 To 344
      Return "crimson"
    Case -1
      Return "grey"
  EndSwitch
EndFunc

Func Distance($c1, $c2)
  Local $r1 = BitShift(BitAND($c1, 0xFF0000), 16), $g1 = BitShift(BitAND($c1, 0xFF00), 8), $b1 = BitAND($c1, 0xFF)
  Local $r2 = BitShift(BitAND($c2, 0xFF0000), 16), $g2 = BitShift(BitAND($c2, 0xFF00), 8), $b2 = BitAND($c2, 0xFF)
  Local $dr = $r2 - $r1, $dg = $g2 - $g1, $db =  $b2 - $b1
  Return SetExtended($dr + $dg + $db < 0, Sqrt($dr * $dr + $dg * $dg + $db * $db))
EndFunc

Func RGB2HSL($iColor) ;http://www.easyrgb.com/en/math.php
  Local $var_r = BitAND(BitShift($iColor, 16), 255) / 255, $var_g = BitAND(BitShift($iColor, 8), 255) / 255, $var_b = BitAND($iColor, 255) / 255
  Local $H, $S, $L, $var_Min, $var_Max, $del_Max, $del_Max2, $del_R, $del_G, $del_B

  $var_Min = Min3($var_r, $var_g, $var_b)
  $var_Max = Max3($var_r, $var_g, $var_b)
  $del_Max = $var_Max - $var_Min
  $L = ($var_Max + $var_Min) / 2
  If $del_Max = 0 Then
    $H = 0
    $S = 0
  Else
    $S = $L < 0.5 ? $del_Max / ($var_Max + $var_Min) : $del_Max / (2 - $var_Max - $var_Min)
    $del_Max2 = $del_Max / 2
    $del_R = ((($var_Max - $var_R) / 6) + $del_Max2) / $del_Max
    $del_G = ((($var_Max - $var_G) / 6) + $del_Max2) / $del_Max
    $del_B = ((($var_Max - $var_B) / 6) + $del_Max2) / $del_Max
    If ($var_R = $var_Max) Then
      $H = $del_B - $del_G
    Elseif $var_G = $var_Max Then
      $H = 0.333333333333333 + $del_R - $del_B
    Elseif $var_B = $var_Max Then
      $H = 0.666666666666667 + $del_G - $del_R
    EndIf
    If $H < 0 Then $H += 1
    If $H > 1 Then $H -= 1
  EndIf
  Local $aHSL[3] = [$H * 360, $S, $L]
  Return $aHSL
EndFunc

Func RGB2HSV($iColor) ;http://www.easyrgb.com/en/math.php
  Local $var_r = BitAND(BitShift($iColor, 16), 255) / 255, $var_g = BitAND(BitShift($iColor, 8), 255) / 255, $var_b = BitAND($iColor, 255) / 255
  Local $H, $S, $V, $var_Min, $var_Max, $del_Max, $del_Max2, $del_R, $del_G, $del_B

  $var_Min = Min3($var_r, $var_g, $var_b)
  $var_Max = Max3($var_r, $var_g, $var_b)
  $del_Max = $var_Max - $var_Min
  $V = $var_Max
  If $del_Max = 0 Then
    $H = 0
    $S = 0
  Else
    $S = $del_Max / $var_Max
    $del_Max2 = $del_Max / 2
    $del_R = ((($var_Max - $var_R) / 6) + $del_Max2) / $del_Max
    $del_G = ((($var_Max - $var_G) / 6) + $del_Max2) / $del_Max
    $del_B = ((($var_Max - $var_B) / 6) + $del_Max2) / $del_Max
    If $var_R = $var_Max Then
      $H = $del_B - $del_G
    ElseIf $var_G = $var_Max Then
      $H = 0.333333333333333 + $del_R - $del_B
    ElseIf $var_B = $var_Max Then
      $H = 0.666666666666667 + $del_G - $del_R
    EndIf
    If $H < 0 Then $H += 1
    If $H > 1 Then $H -= 1
  EndIf
  Local $aHSV[3] = [$H * 360, $S, $V]
  Return $aHSV
EndFunc

Func RGA2CMYK($iColor)
  Local $r = BitAND(BitShift($iColor, 16), 255), $g = BitAND(BitShift($iColor, 8), 255), $b = BitAND($iColor, 255)
  Local $C = 1 - ($r / 255), $M = 1 - ($G / 255), $Y = 1 - ($B / 255), $K = 1
  If ($C < $K) Then $K = $C
  If ($M < $K) Then $K = $M
  If ($Y < $K) Then $K = $Y
  If ($K = 1) Then ;Black only
    $C = 0
    $M = 0
    $Y = 0
  Else
    $C = ($C - $K) / (1 - $K)
    $M = ($M - $K) / (1 - $K)
    $Y = ($Y - $K) / (1 - $K)
  EndIf
  Local $aCMYK[] = [$C, $M, $Y, $K]
  Return $aCMYK
EndFunc

Func SortByBrightColor(ByRef $List) ; by fee
  Local Const _
      $High = UBound($List)
  Local $Sort[$High][$High]
  For $a = 0 To $High - 1
    $Redd = BitAnd(BitShift($List[$a], 16), 0xFF)
    $Gren = BitAnd(BitShift($List[$a],  8), 0xFF)
    $Blue = BitAnd(         $List[$a],      0xFF)
    $Mini = Min3($Redd, $Gren, $Blue)
    $Maxi = Max3($Redd, $Gren, $Blue)
    $Dist = $Maxi - $Mini
    $Luma = Round(($Redd * 0.299) + ($Gren * 0.587) + ($Blue * 0.114))
    $Sort[$Luma][$Dist] = $List[$a]
  Next
  $c = 0
  For $a = 0 To $High - 1
    For $b = 0 To $High - 1
      If $Sort[$a][$b] = '' Then ContinueLoop
      $List[$c] = $Sort[$a][$b]
      $c += 1
    Next
  Next
EndFunc   ;==>SortByBrightColor

Func Min($a, $b)
  Return ($a < $b) ? $a : $b
EndFunc

Func Max($a, $b)
  Return ($a > $b) ? $a : $b
EndFunc

Func Min3($a, $b, $c)
  Return Min(Min($a, $b), $C)
EndFunc

Func Max3($a, $b, $c)
  Return Max(Max($a, $b), $C)
EndFunc

; #FUNCTION# =============================================================================
; Name.............:    _ArraySort_MultiColumn
; Description ...:      sorts an array at given colums (multi colum sort)
; Syntax...........:    _ArraySort_MultiColumn(ByRef $aSort, ByRef $aIndices)
; Parameters ...:        $aSort - array to sort
;                        $aIndices - array with colum indices which should be sorted in specified order - zero based
;                        $oDir/$iDir - sort direction - if set to 1, sort descending else ascending. $oDir is for the 1st row,
;                                                      $iDir for the remaining rows
;                        $iStart - where to start to sort - 0 = 0 based array, 1 = 1 based array
; Author .........:        UEZ
; Version ........:        v0.80 build 2019-01-26 Beta
; =========================================================================================
Func _ArraySort_MultiColumn(ByRef $aSort, ByRef $aIndices, $oDir = 0, $iDir = 0, $iStart = 0)
  If Not IsArray($aIndices) Or Not IsArray($aSort) Then Return SetError(1, 0, 0) ;checks if $aIndices is an array
  If UBound($aSort, 2) = 0 Then Return SetError(4, 0, 0) ;array is 1D only
  If UBound($aIndices) > UBound($aSort, 2) Then Return SetError(2, 0, 0) ;check if $aIndices array is greater the $aSort array
  Local $1st, $2nd, $x, $j, $k, $l = 0
  For $x = 0 To UBound($aIndices) - 1 ;check if array content makes sense
    If Not IsInt($aIndices[$x]) Then Return SetError(3, 0, 0) ;array content is not numeric
  Next
  $iStart = Int($iStart) < 0 ? 0 : Int($iStart) > 1 ? 1 : Int($iStart)
  If UBound($aIndices) = 1 Then Return _ArraySort($aSort, $oDir, $iStart, 0, $aIndices[0]) ;check if only one index is given
  _ArraySort($aSort, $oDir, $iStart, 0, $aIndices[0])
  Do
    $1st = $aIndices[$l]
    $2nd = $aIndices[$l + 1]
    $j = 0
    $k = 1
    While $k < UBound($aSort)
      If $aSort[$j][$1st] <> $aSort[$k][$1st] Then
        If $k - $j > 1 Then
          _ArraySort($aSort, $iDir, $j, $k - 1, $2nd)
          $j = $k
        Else
          $j = $k
        EndIf
      EndIf
      $k += 1
    WEnd
    If $k - $j > 1 Then _ArraySort($aSort, $iDir, $j, $k, $2nd)
    $l += 1
  Until $l = UBound($aIndices) - 1
  Return 1
EndFunc   ;==>_ArraySort_MultiColumn

; #FUNCTION# ====================================================================================================================
; Name...........: _ArrayMultiColSort
; Description ...: Sort 2D arrays on several columns
; Syntax.........: _ArrayMultiColSort(ByRef $aArray, $aSortData[, $iStart = 0[, $iEnd = 0]])
; Parameters ....: $aArray    - The 2D array to be sorted
;                  $aSortData - 2D array holding details of the sort format
;                               Format: [Column to be sorted, Sort order]
;                                   Sort order can be either numeric (0/1 = ascending/descending) or a ordered string of items
;                                   Any elements not matched in string are left unsorted after all sorted elements
;                  $iStart    - Element of array at which sort starts (default = 0)
;                  $iEnd      - Element of array at which sort endd (default = 0 - converted to end of array)
; Requirement(s).: v3.3.8.1 or higher
; Return values .: Success: No error
;                  Failure: @error set as follows
;                            @error = 1 with @extended set as follows (all refer to $sIn_Date):
;                                1 = Array to be sorted not 2D
;                                2 = Sort data array not 2D
;                                3 = More data rows in $aSortData than columns in $aArray
;                                4 = Start beyond end of array
;                                5 = Start beyond End
;                            @error = 2 with @extended set as follows:
;                                1 = Invalid string parameter in $aSortData
;                                2 = Invalid sort direction parameter in $aSortData
;                                3 = Invalid column index in $aSortData
; Author ........: Melba23
; Remarks .......: Columns can be sorted in any order
; Example .......; Yes
; ===============================================================================================================================
Func _ArrayMultiColSort(ByRef $aArray, $aSortData, $iStart = 0, $iEnd = 0)

  ; Errorchecking
  ; 2D array to be sorted
  If UBound($aArray, 2) = 0 Then
    Return SetError(1, 1, "")
  EndIf
  ; 2D sort data
  If UBound($aSortData, 2) <> 2 Then
    Return SetError(1, 2, "")
  EndIf
  If UBound($aSortData) > UBound($aArray) Then
    Return SetError(1, 3)
  EndIf
  For $i = 0 To UBound($aSortData) - 1
    If $aSortData[$i][0] < 0 Or $aSortData[$i][0] > UBound($aArray, 2) -1 Then
      Return SetError(2, 3, "")
    EndIf
  Next
  ; Start element
  If $iStart < 0 Then
    $iStart = 0
  EndIf
  If $iStart >= UBound($aArray) - 1 Then
    Return SetError(1, 4, "")
  EndIf
  ; End element
  If $iEnd <= 0 Or $iEnd >= UBound($aArray) - 1 Then
    $iEnd = UBound($aArray) - 1
  EndIf
  ; Sanity check
  If $iEnd <= $iStart Then
    Return SetError(1, 5, "")
  EndIf

  Local $iCurrCol, $iChunk_Start, $iMatchCol

  ; Sort first column
  __AMCS_SortChunk($aArray, $aSortData, 0, $aSortData[0][0], $iStart, $iEnd)
  If @error Then
    Return SetError(2, @extended, "")
  EndIf
  ; Now sort within other columns
  For $iSortData_Row = 1 To UBound($aSortData) - 1
    ; Determine column to sort
    $iCurrCol = $aSortData[$iSortData_Row][0]
    ; Create arrays to hold data from previous columns
    Local $aBaseValue[$iSortData_Row]
    ; Set base values
    For $i = 0 To $iSortData_Row - 1
      $aBaseValue[$i] = $aArray[$iStart][$aSortData[$i][0]]
    Next
    ; Set start of this chunk
    $iChunk_Start = $iStart
    ; Now work down through array
    For $iRow = $iStart + 1 To $iEnd
      ; Match each column
      For $k = 0 To $iSortData_Row - 1
        $iMatchCol = $aSortData[$k][0]
        ; See if value in each has changed
        If $aArray[$iRow][$iMatchCol] <> $aBaseValue[$k] Then
          ; If so and row has advanced
          If $iChunk_Start < $iRow - 1 Then
            ; Sort this chunk
            __AMCS_SortChunk($aArray, $aSortData, $iSortData_Row, $iCurrCol, $iChunk_Start, $iRow - 1)
            If @error Then
              Return SetError(2, @extended, "")
            EndIf
          EndIf
          ; Set new base value
          $aBaseValue[$k] = $aArray[$iRow][$iMatchCol]
          ; Set new chunk start
          $iChunk_Start = $iRow
        EndIf
      Next
    Next
    ; Sort final section
    If $iChunk_Start < $iRow - 1 Then
      __AMCS_SortChunk($aArray, $aSortData, $iSortData_Row, $iCurrCol, $iChunk_Start, $iRow - 1)
      If @error Then
        Return SetError(2, @extended, "")
      EndIf
    EndIf
  Next

EndFunc   ;==>_ArrayMultiColSort

; #INTERNAL_USE_ONLY# ===========================================================================================================
; Name...........: __AMCS_SortChunk
; Description ...: Sorts array section
; Author ........: Melba23
; Remarks .......:
; ===============================================================================================================================
Func __AMCS_SortChunk(ByRef $aArray, $aSortData, $iRow, $iColumn, $iChunkStart, $iChunkEnd)

  Local $aSortOrder

  ; Set default sort direction
  Local $iSortDirn = 1
  ; Need to prefix elements?
  If IsString($aSortData[$iRow][1]) Then
    ; Split elements
    $aSortOrder = StringSplit($aSortData[$iRow][1], ",")
    If @error Then
      Return SetError(1, 1, "")
    EndIf
    ; Add prefix to each element
    For $i = $iChunkStart To $iChunkEnd
      For $j = 1 To $aSortOrder[0]
        If $aArray[$i][$iColumn] = $aSortOrder[$j] Then
          $aArray[$i][$iColumn] = StringFormat("%02i-", $j) & $aArray[$i][$iColumn]
          ExitLoop
        EndIf
      Next
      ; Deal with anything that does not match
      If $j > $aSortOrder[0] Then
        $aArray[$i][$iColumn] = StringFormat("%02i-", $j) & $aArray[$i][$iColumn]
      EndIf
    Next
  Else
    Switch $aSortData[$iRow][1]
      Case 0, 1
        ; Set required sort direction if no list
        If $aSortData[$iRow][1] Then
          $iSortDirn = -1
        Else
          $iSortDirn = 1
        EndIf
      Case Else
        Return SetError(1, 2, "")
    EndSwitch
  EndIf

  ; Sort the chunk
  Local $iSubMax = UBound($aArray, 2) - 1
  __ArrayQuickSort2D($aArray, $iSortDirn, $iChunkStart, $iChunkEnd, $iColumn, $iSubMax)

  ; Remove any prefixes
  If IsString($aSortData[$iRow][1]) Then
    For $i = $iChunkStart To $iChunkEnd
      $aArray[$i][$iColumn] = StringTrimLeft($aArray[$i][$iColumn], 3)
    Next
  EndIf

EndFunc   ;==>__AMCS_SortChunk

Alles anzeigen

Edit:

Und nochwas:

AutoIt

Func SortByHUEGroup_LABLightness(ByRef $aColortable)
    Local $iDim = UBound($aColortable)

    Local $aHSL, $iIdx, $aGroup[12], $aTmp[0][2]
    For $i = 0 To 11
        $aGroup[$i] = $aTmp
    Next

    Local $aLAB
    For $i = 0 To $iDim - 1
        $aLAB = _RGB2LAB($aColortable[$i])
        $aHSL = RGB2HSL($aColortable[$i])
        $iIdx = Floor(Mod($aHSL[0], 360) / 30)

        _ArrayAdd($aGroup[$iIdx], $aLAB[0] & "|" & $aColortable[$i])
    Next

    $iIdx = 0
    For $i = 0 To 11
        $aTmp = $aGroup[$i]
        For $j = 0 To UBound($aTmp)-1
            $aTmp[$j][0] = Number($aTmp[$j][0])
        Next
        _ArraySort($aTmp)
        $aGroup[$i] = $aTmp

        For $j = 0 To UBound($aTmp)-1
            $aColortable[$iIdx] = $aTmp[$j][1]
            $iIdx += 1
        Next
    Next

EndFunc

Alles anzeigen

AutoIt

Func SortByHUEGroup_LABLightness_V2(ByRef $aColortable)
    Local $iDim = UBound($aColortable)

    Local $aHSL, $iIdx, $aGroup[12], $aTmp[0][2]
    For $i = 0 To 11
        $aGroup[$i] = $aTmp
    Next

    Local $aLAB
    For $i = 0 To $iDim - 1
        $aLAB = _RGB2LAB($aColortable[$i])
        $aHSL = RGB2HSL($aColortable[$i])
        $iIdx = Floor(Mod($aHSL[0], 360) / 30)

        _ArrayAdd($aGroup[$iIdx], $aLAB[0] & "|" & $aColortable[$i])
    Next

    $iIdx = 0
    For $i = 0 To 11
        $aTmp = $aGroup[$i]
        For $j = 0 To UBound($aTmp)-1
            $aTmp[$j][0] = Number($aTmp[$j][0])
        Next
        _ArraySort($aTmp, Mod($i, 2))
        $aGroup[$i] = $aTmp

        For $j = 0 To UBound($aTmp)-1
            $aColortable[$iIdx] = $aTmp[$j][1]
            $iIdx += 1
        Next
    Next

EndFunc

Alles anzeigen

**eukalyptus**

Eine Idee wäre, zuerst in HSL zu gruppieren u innerhalb mit LAB zu sortieren...

Oder nicht immer den letzten LAB-Wert zur Suche verwenden (Zeile 95), sondern die Farbe vorgeben, zB via HUE

ColorTable[0................X]

HUE[0............360] -> LAB[x.............y]

**eukalyptus**

Hi UEZ!

Mit LAB bekommst du einen ganz guten Color-Unterschied geliefert. SQRT((L2-L1)^2 + (A2-A1)^2 + (B2-B1)^2)

AutoIt

;Coded by UEZ build 2023-03-14
#include <Array.au3>
#include <GDIPlus.au3>
#include <GUIConstantsEx.au3>
#include <WindowsConstants.au3>
_GDIPlus_Startup()

Global $hGUI = GUICreate("GDI+ Color Sorting / Grouping Test", 800, 320)
GUISetState()
Global $hGraphic = _GDIPlus_GraphicsCreateFromHWND($hGUI)
Global $hPen = _GDIPlus_PenCreate(0)
_GDIPlus_GraphicsClear($hGraphic)


Global $aColortable[511], $i, $y = 0
For $i = 0 To UBound($aColortable) - 1
    $aColortable[$i] = Int(Random() * 0xFFFFFF)
Next

DrawColors($y, "Random")

SortByDistance($aColortable)
$y += 40
DrawColors($y, "Distance")

SortByHSL($aColortable)
$y += 40
DrawColors($y, "HSL")

SortByHSV($aColortable)
$y += 40
DrawColors($y, "HSV")

SortByGroupingHSL($aColortable)
$y += 40
DrawColors($y, "Grouping HSL")

SortByGroupingHSV($aColortable)
$y += 40
DrawColors($y, "Grouping HSV")

SortByLAB($aColortable)
$y += 40
DrawColors($y, "LAB")

_ArraySort($aColortable)
$y += 40
DrawColors($y, "Default Array Sort")

While GUIGetMsg() <> $GUI_EVENT_CLOSE
    Sleep(10)
WEnd

_GDIPlus_PenDispose($hPen)
_GDIPlus_GraphicsDispose($hGraphic)
_GDIPlus_Shutdown()
GUIDelete()
Exit

Func DrawColors($y, $txt = 0)
    For $i = 0 To UBound($aColortable) - 1
        _GDIPlus_PenSetColor($hPen, BitOR(0xFF000000, $aColortable[$i]))
        _GDIPlus_GraphicsDrawLine($hGraphic, $i, $y, $i, $y + 32, $hPen)
    Next
    If $txt Then _GDIPlus_GraphicsDrawString($hGraphic, $txt, $i + 8, $y + 4, "Arial", 16, Default, 0xFFFFFFFF)
EndFunc





Func SortByLAB(ByRef $aColortable, $iStartRGB = 0xFF0000)
    Local $iDim = UBound($aColortable)
    Local $aLAB[$iDim][2]

    For $i = 0 To $iDim - 1
        $aLAB[$i][0] = _RGB2LAB($aColortable[$i])
    Next

    Local $aLastLAB = _RGB2LAB($iStartRGB)

    Local $aSort[$iDim], $fD, $fMin, $iIdx
    For $i = 0 To $iDim - 1
        $fMin = 2 ^ 32
        $iIdx = -1
        For $j = 0 To $iDim - 1
            If $aLAB[$j][1] Then ContinueLoop
            $fD = Sqrt((($aLAB[$j][0])[0] - $aLastLAB[0]) ^ 2 + (($aLAB[$j][0])[1] - $aLastLAB[1]) ^ 2 + (($aLAB[$j][0])[2] - $aLastLAB[2]) ^ 2)
            If $fD < $fMin Then
                $fMin = $fD
                $iIdx = $j
            EndIf
        Next
        $aSort[$i] = $iIdx
        $aLastLAB = $aLAB[$iIdx][0]
        $aLAB[$iIdx][1] = True
    Next

    $aTmp = $aColortable
    For $i = 0 To $iDim - 1
        $aColortable[$i] = $aTmp[$aSort[$i]]
    Next

EndFunc




Func _RGB2LAB($iRGB)
    Local $aRGB[3]
    $aRGB[0] = BitAND(BitShift($iRGB, 16), 0xFF) / 255
    $aRGB[1] = BitAND(BitShift($iRGB, 8), 0xFF) / 255
    $aRGB[2] = BitAND($iRGB, 0xFF) / 255

    For $i = 0 To 2
        If $aRGB[$i] > 0.04045 Then
            $aRGB[$i] = (($aRGB[$i] + 0.055) / 1.055) ^ 2.4
        Else
            $aRGB[$i] = $aRGB[$i] / 12.92
        EndIf
        $aRGB[$i] *= 100
    Next

    Local $aXYZ[3]
    $aXYZ[0] = ($aRGB[0] * 0.4124 + $aRGB[1] * 0.3576 + $aRGB[2] * 0.1805) / 95.047
    $aXYZ[1] = ($aRGB[0] * 0.2126 + $aRGB[1] * 0.7152 + $aRGB[2] * 0.0722) / 100.0
    $aXYZ[2] = ($aRGB[0] * 0.0193 + $aRGB[1] * 0.1192 + $aRGB[2] * 0.9505) / 108.883

    For $i = 0 To 2
        If $aXYZ[$i] > 0.008856 Then
            $aXYZ[$i] = $aXYZ[$i] ^ 0.3333333333333333
        Else
            $aXYZ[$i] = (7.787 * $aXYZ[$i]) + (16 / 116)
        EndIf
    Next

    Local $aLAB[3]
    $aLAB[0] = (116 * $aXYZ[1]) - 16
    $aLAB[1] = 500 * ($aXYZ[0] - $aXYZ[1])
    $aLAB[2] = 200 * ($aXYZ[1] - $aXYZ[2])

    Return $aLAB
EndFunc











Func SortByDistance(ByRef $aColortable)
    Local $i, $aTmp[2], $swapped
    Do ;bubblesort -> slow!
        $swapped = 0
        For $i = 0 To UBound($aColortable) - 2
            Distance($aColortable[$i], $aColortable[$i + 1])
            If @extended Then
                $aTmp[0] = $aColortable[$i]
                $aColortable[$i] = $aColortable[$i + 1]
                $aColortable[$i + 1] = $aTmp[0]
                $swapped = 1
            EndIf
        Next
    Until $swapped = 0
EndFunc

Func SortByHSL(ByRef $aColortable, $sc = 1)
    Local $aColortable2[UBound($aColortable)][4]
    Local $a, $i
    For $i = 0 To UBound($aColortable) - 1
        $a = RGB2HSL($aColortable[$i])
        $aColortable2[$i][0] = $aColortable[$i]
        $aColortable2[$i][1] = $a[0]
        $aColortable2[$i][2] = $a[1]
        $aColortable2[$i][3] = $a[2]
    Next
    $sc = Max(Min($sc, 3), 1)
    _ArraySort($aColortable2, 0, 0, 0, $sc)
    For $i = 0 To UBound($aColortable2) - 1
        $aColortable[$i] = $aColortable2[$i][0]
    Next
    Dim $aColortable2[0]
EndFunc

Func SortByHSV(ByRef $aColortable, $sc = 1)
    Local $aColortable2[UBound($aColortable)][4]
    Local $a, $i
    For $i = 0 To UBound($aColortable) - 1
        $a = RGB2HSV($aColortable[$i])
        $aColortable2[$i][0] = $aColortable[$i]
        $aColortable2[$i][1] = $a[0]
        $aColortable2[$i][2] = $a[1]
        $aColortable2[$i][3] = $a[2]
    Next
    $sc = Max(Min($sc, 3), 1)
    _ArraySort($aColortable2, 0, 0, 0, $sc)
    For $i = 0 To UBound($aColortable2) - 1
        $aColortable[$i] = $aColortable2[$i][0]
    Next
    Dim $aColortable2[0]
EndFunc

Func SortByGroupingHSL(ByRef $aColortable, $sc = 2)
    Local $red[0][2], $orange[0][2], $yellow[0][2], $lime[0][2], $green[0][2], $turqoise[0][2], $cyan[0][2], $cobalt[0][2], $blue[0][2], $violet[0][2], $magenta[0][2], $crimson[0][2], $grey[0][2], $i, $j, $col
    $sc = Max(Min($sc, 2), 0)
    For $i = 0 To UBound($aColortable) - 1
        $col = $aColortable[$i]
        Switch RGBtoColorGroup($col)
            Case "red"
                _ArrayAdd($red, $aColortable[$i] & "|" & RGB2HSL($col)[$sc])
            Case "orange"
                _ArrayAdd($orange, $aColortable[$i] & "|" & RGB2HSL($col)[$sc])
            Case "yellow"
                _ArrayAdd($yellow, $aColortable[$i] & "|" & RGB2HSL($col)[$sc])
            Case "lime"
                _ArrayAdd($lime, $aColortable[$i] & "|" & RGB2HSL($col)[$sc])
            Case "green"
                _ArrayAdd($green, $aColortable[$i] & "|" & RGB2HSL($col)[$sc])
            Case "turqoise"
                _ArrayAdd($turqoise, $aColortable[$i] & "|" & RGB2HSL($col)[$sc])
            Case "cyan"
                _ArrayAdd($cyan, $aColortable[$i] & "|" & RGB2HSL($col)[$sc])
            Case "cobalt"
                _ArrayAdd($cobalt, $aColortable[$i] & "|" & RGB2HSL($col)[$sc])
            Case "blue"
                _ArrayAdd($blue, $aColortable[$i] & "|" & RGB2HSL($col)[$sc])
            Case "violet"
                _ArrayAdd($violet, $aColortable[$i] & "|" & RGB2HSL($col)[$sc])
            Case "magenta"
                _ArrayAdd($magenta, $aColortable[$i] & "|" & RGB2HSL($col)[$sc])
            Case "crimson"
                _ArrayAdd($crimson, $aColortable[$i] & "|" & RGB2HSL($col)[$sc])
            Case "grey"
                _ArrayAdd($grey, $aColortable[$i] & "|" & RGB2HSL($col)[$sc])
        EndSwitch
    Next
    _ArraySort($red, 0, 0, 0, 1)
    _ArraySort($orange, 0, 0, 0, 1)
    _ArraySort($yellow, 0, 0, 0, 1)
    _ArraySort($lime, 0, 0, 0, 1)
    _ArraySort($green, 0, 0, 0, 1)
    _ArraySort($turqoise, 0, 0, 0, 1)
    _ArraySort($cyan, 0, 0, 0, 1)
    _ArraySort($cobalt, 0, 0, 0, 1)
    _ArraySort($blue, 0, 0, 0, 1)
    _ArraySort($violet, 0, 0, 0, 1)
    _ArraySort($magenta, 0, 0, 0, 1)
    _ArraySort($crimson, 0, 0, 0, 1)
    _ArraySort($grey, 0, 0, 0, 1)
    $i = 0
    For $j = 0 To UBound($red) - 1
        $aColortable[$i] = $red[$j][0]
        $i += 1
    Next
    For $j = 0 To UBound($orange) - 1
        $aColortable[$i] = $orange[$j][0]
        $i += 1
    Next
    For $j = 0 To UBound($yellow) - 1
        $aColortable[$i] = $yellow[$j][0]
        $i += 1
    Next
    For $j = 0 To UBound($lime) - 1
        $aColortable[$i] = $lime[$j][0]
        $i += 1
    Next
    For $j = 0 To UBound($green) - 1
        $aColortable[$i] = $green[$j][0]
        $i += 1
    Next
    For $j = 0 To UBound($turqoise) - 1
        $aColortable[$i] = $turqoise[$j][0]
        $i += 1
    Next
    For $j = 0 To UBound($cyan) - 1
        $aColortable[$i] = $cyan[$j][0]
        $i += 1
    Next
    For $j = 0 To UBound($cobalt) - 1
        $aColortable[$i] = $cobalt[$j][0]
        $i += 1
    Next
    For $j = 0 To UBound($blue) - 1
        $aColortable[$i] = $blue[$j][0]
        $i += 1
    Next
    For $j = 0 To UBound($violet) - 1
        $aColortable[$i] = $violet[$j][0]
        $i += 1
    Next
    For $j = 0 To UBound($magenta) - 1
        $aColortable[$i] = $magenta[$j][0]
        $i += 1
    Next
    For $j = 0 To UBound($crimson) - 1
        $aColortable[$i] = $crimson[$j][0]
        $i += 1
    Next
    For $j = 0 To UBound($grey) - 1
        $aColortable[$i] = $grey[$j][0]
        $i += 1
    Next
EndFunc

Func SortByGroupingHSV(ByRef $aColortable, $sc = 2)
    Local $red[0][2], $orange[0][2], $yellow[0][2], $lime[0][2], $green[0][2], $turqoise[0][2], $cyan[0][2], $cobalt[0][2], $blue[0][2], $violet[0][2], $magenta[0][2], $crimson[0][2], $grey[0][2], $i, $j, $col
    $sc = Max(Min($sc, 2), 0)
    For $i = 0 To UBound($aColortable) - 1
        $col = $aColortable[$i]
        Switch RGBtoColorGroup($col)
            Case "red"
                _ArrayAdd($red, $aColortable[$i] & "|" & RGB2HSV($col)[$sc])
            Case "orange"
                _ArrayAdd($orange, $aColortable[$i] & "|" & RGB2HSV($col)[$sc])
            Case "yellow"
                _ArrayAdd($yellow, $aColortable[$i] & "|" & RGB2HSV($col)[$sc])
            Case "lime"
                _ArrayAdd($lime, $aColortable[$i] & "|" & RGB2HSV($col)[$sc])
            Case "green"
                _ArrayAdd($green, $aColortable[$i] & "|" & RGB2HSV($col)[$sc])
            Case "turqoise"
                _ArrayAdd($turqoise, $aColortable[$i] & "|" & RGB2HSV($col)[$sc])
            Case "cyan"
                _ArrayAdd($cyan, $aColortable[$i] & "|" & RGB2HSV($col)[$sc])
            Case "cobalt"
                _ArrayAdd($cobalt, $aColortable[$i] & "|" & RGB2HSV($col)[$sc])
            Case "blue"
                _ArrayAdd($blue, $aColortable[$i] & "|" & RGB2HSV($col)[$sc])
            Case "violet"
                _ArrayAdd($violet, $aColortable[$i] & "|" & RGB2HSV($col)[$sc])
            Case "magenta"
                _ArrayAdd($magenta, $aColortable[$i] & "|" & RGB2HSV($col)[$sc])
            Case "crimson"
                _ArrayAdd($crimson, $aColortable[$i] & "|" & RGB2HSV($col)[$sc])
            Case "grey"
                _ArrayAdd($grey, $aColortable[$i] & "|" & RGB2HSV($col)[$sc])
        EndSwitch
    Next
    _ArraySort($red, 0, 0, 0, 1)
    _ArraySort($orange, 0, 0, 0, 1)
    _ArraySort($yellow, 0, 0, 0, 1)
    _ArraySort($lime, 0, 0, 0, 1)
    _ArraySort($green, 0, 0, 0, 1)
    _ArraySort($turqoise, 0, 0, 0, 1)
    _ArraySort($cyan, 0, 0, 0, 1)
    _ArraySort($cobalt, 0, 0, 0, 1)
    _ArraySort($blue, 0, 0, 0, 1)
    _ArraySort($violet, 0, 0, 0, 1)
    _ArraySort($magenta, 0, 0, 0, 1)
    _ArraySort($crimson, 0, 0, 0, 1)
    _ArraySort($grey, 0, 0, 0, 1)
    $i = 0
    For $j = 0 To UBound($red) - 1
        $aColortable[$i] = $red[$j][0]
        $i += 1
    Next
    For $j = 0 To UBound($orange) - 1
        $aColortable[$i] = $orange[$j][0]
        $i += 1
    Next
    For $j = 0 To UBound($yellow) - 1
        $aColortable[$i] = $yellow[$j][0]
        $i += 1
    Next
    For $j = 0 To UBound($lime) - 1
        $aColortable[$i] = $lime[$j][0]
        $i += 1
    Next
    For $j = 0 To UBound($green) - 1
        $aColortable[$i] = $green[$j][0]
        $i += 1
    Next
    For $j = 0 To UBound($turqoise) - 1
        $aColortable[$i] = $turqoise[$j][0]
        $i += 1
    Next
    For $j = 0 To UBound($cyan) - 1
        $aColortable[$i] = $cyan[$j][0]
        $i += 1
    Next
    For $j = 0 To UBound($cobalt) - 1
        $aColortable[$i] = $cobalt[$j][0]
        $i += 1
    Next
    For $j = 0 To UBound($blue) - 1
        $aColortable[$i] = $blue[$j][0]
        $i += 1
    Next
    For $j = 0 To UBound($violet) - 1
        $aColortable[$i] = $violet[$j][0]
        $i += 1
    Next
    For $j = 0 To UBound($magenta) - 1
        $aColortable[$i] = $magenta[$j][0]
        $i += 1
    Next
    For $j = 0 To UBound($crimson) - 1
        $aColortable[$i] = $crimson[$j][0]
        $i += 1
    Next
    For $j = 0 To UBound($grey) - 1
        $aColortable[$i] = $grey[$j][0]
        $i += 1
    Next
EndFunc

Func RGBtoColorGroup($iColor)
    Local $HSL = RGB2HSL($iColor), $H, $r
    If $HSL[0] = 0 And $HSL[1] = 0 Then
        $H = -1
    Else
        $H = $HSL[0]
    EndIf
    Switch $H
        Case 0 To 15, 345 To 360
            Return "red"
        Case 15 To 45
            Return "orange"
        Case 45 To 75
            Return "yellow"
        Case 75 To 105
            Return "lime"
        Case 105 To 135
            Return "green"
        Case 135 To 165
            Return "turqoise"
        Case 165 To 195
            Return "cyan"
        Case 195 To 225
            Return "cobalt"
        Case 225 To 255
            Return "blue"
        Case 255 To 285
            Return "violet"
        Case 285 To 315
            Return "magenta"
        Case 315 To 345
            Return "crimson"
        Case -1
            Return "grey"
    EndSwitch
EndFunc

Func Distance($c1, $c2)
    Local $r1 = BitShift(BitAND($c1, 0xFF0000), 16), $g1 = BitShift(BitAND($c1, 0xFF00), 8), $b1 = BitAND($c1, 0xFF)
    Local $r2 = BitShift(BitAND($c2, 0xFF0000), 16), $g2 = BitShift(BitAND($c2, 0xFF00), 8), $b2 = BitAND($c2, 0xFF)
    Local $dr = $r2 - $r1, $dg = $g2 - $g1, $db =  $b2 - $b1
    Return SetExtended($dr + $dg + $db < 0, Sqrt($dr * $dr + $dg * $dg + $db * $db))
EndFunc

Func RGB2HSL($iColor)
    Local $r = BitAND(BitShift($iColor, 16), 255) / 255, $g = BitAND(BitShift($iColor, 8), 255) / 255, $b = BitAND($iColor, 255) / 255
    Local $Cmax = Max(Max($r, $g), $b), $Cmin = Min(Min($r, $g), $b), $deltaChroma = $Cmax - $Cmin
    Local $L = ($Cmin + $Cmax) / 2, $H, $S
    If $deltaChroma = 0 Then
        $H = 0
        $S = 0
    Else
        $S = $deltaChroma / (1 - Abs(2 * $L - 1))
        Switch $Cmax
            Case $r
                $H = Mod(($g - $b) / $deltaChroma, 6)
            Case $g
                $H = ($b - $r) / $deltaChroma + 2
            Case Else
                $H = ($r - $g) / $deltaChroma + 4
        EndSwitch
        $H *= 60
        If $H < 0 Then $H += 360
    EndIf
    Local $aHSL[3] = [$H, $S, $L]
    Return $aHSL
EndFunc

Func RGB2HSV($iColor)
    Local $r = BitAND(BitShift($iColor, 16), 255) / 255, $g = BitAND(BitShift($iColor, 8), 255) / 255, $b = BitAND($iColor, 255) / 255
    Local $h, $s, $v, $c, $minRGB, $maxRGB, $deltaRGB

    $minRGB = Min3($r, $g, $b)
    $maxRGB = Max3($r, $g, $b)
    $deltaRGB = $maxRGB - $minRGB

    If $deltaRGB = 0 Then
        $h = 0
    ElseIf $maxRGB = $r Then
        $h = 60 * Mod((($g - $b) / $deltaRGB), 6)
    ElseIf $maxRGB = $g Then
        $h = 60 * ((($b - $r) / $deltaRGB) + 2)
    Else
        $h = 60 * ((($r - $g) / $deltaRGB) + 4)
    EndIf

    If $maxRGB = 0 Then
        $s = 0
    Else
        $s = $deltaRGB / $maxRGB
    EndIf

    $v = $maxRGB
    Local $aHSV[3] = [$H, $S, $V]
    Return $aHSV
EndFunc

Func Min($a, $b)
    Return ($a < $b) ? $a : $b
EndFunc

Func Max($a, $b)
    Return ($a > $b) ? $a : $b
EndFunc

Func Min3($a, $b, $c)
    Return Min(Min($a, $b), $C)
EndFunc

Func Max3($a, $b, $c)
    Return Max(Max($a, $b), $C)
EndFunc

Alles anzeigen

Den RGB2LAB Code hab ich von Stackoverflow, leider find ich das Original nicht mehr...

lg

E

**eukalyptus**

Yeah!

**eukalyptus**

Eigentlich ein cooles Feature!

Tja - Ich bin wohl doch schon etwas aus der Übung!

**eukalyptus**

Ahh! Danke!

Das hilft schonmal enorm zu wissen, dass es die STRG Taste ist.

Keine Katze - wahrscheinlich ein pöser Geist

thx

Beiträge von eukalyptus

DLL-Return als Objekt - wie?

DLL-Return als Objekt - wie?

DLL-Return als Objekt - wie?

DLL-Return als Objekt - wie?

DLL-Return als Objekt - wie?

ListView Ctrl+A alles selektieren

ListView Ctrl+A alles selektieren

ListView Ctrl+A alles selektieren

ListView Ctrl+A alles selektieren

Toolbar - Icon-Namen

Ausgang aus While Schleife

TCP - Send

Schreiben in ein Array in einer Map

Schreiben in ein Array in einer Map

Farben Sortieren / Gruppieren

Farben Sortieren / Gruppieren

Farben Sortieren / Gruppieren

2 Cursor Positionen in SciTE

2 Cursor Positionen in SciTE

2 Cursor Positionen in SciTE
