@autobert2 : geht fast.. dank Beispiel im Englishen Forum. Aber es scheint als der Textumdrehung der ganze Canvas dreht. Deshalb kann ich meine Striche nicht zeichnen.
Ich sollte vielleicht mein Text separat zeichnen, und dann als Overlay einsetzen. Aber ich bin unsicher wie das geht.
Also: Text 0 Grad geht perfekt. Kann aber nur Beispiele für 90-Grad text im Gui finden.
Mein Code soweit:
Spoiler anzeigen
AutoIt
#include <GUIConstantsEx.au3>
#include <GDIPlus.au3>
#include<Color.au3>
_GDIPlus_Startup()
#region GDI+
;create an empty bitmap
Global Const $iWidth = 2000, $iHeight = 900 ;dimension of the bitmap

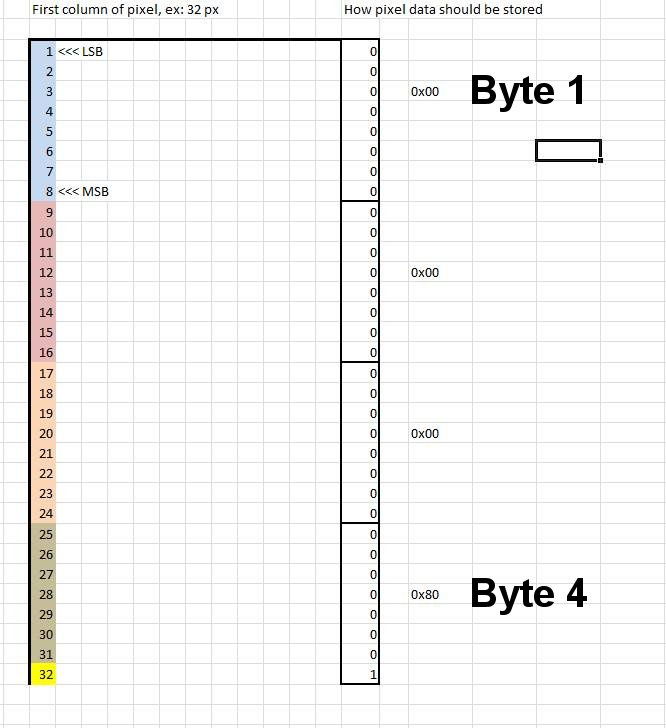

Global Const $iStride = 0, $pScan0 = 0, $iPixelFormat = $GDIP_PXF01INDEXED ;some bitmap parameters
$hBitmap = _GDIPlus_BitmapCreateFromScan0($iWidth, $iHeight, $iPixelFormat, $iStride, $pScan0)
; This is used where documentation mentions
; "handle to a graphics object"
Global Const $hContext = _GDIPlus_ImageGetGraphicsContext($hBitmap)
Global Const $iBgColor = 0xFFFFFFFF ;define background color -> ARGB
;~ $hGraphics Handle to a Graphics object
_GDIPlus_GraphicsClear($hContext, $iBgColor) ;clear empty bitmap with new color
; define the pen
; default = 0xFF000000 = black solid.
$hPen = _GDIPlus_PenCreate(0xFF000000, 2,1) ; 2 px black
;
; DRAW the lines and text

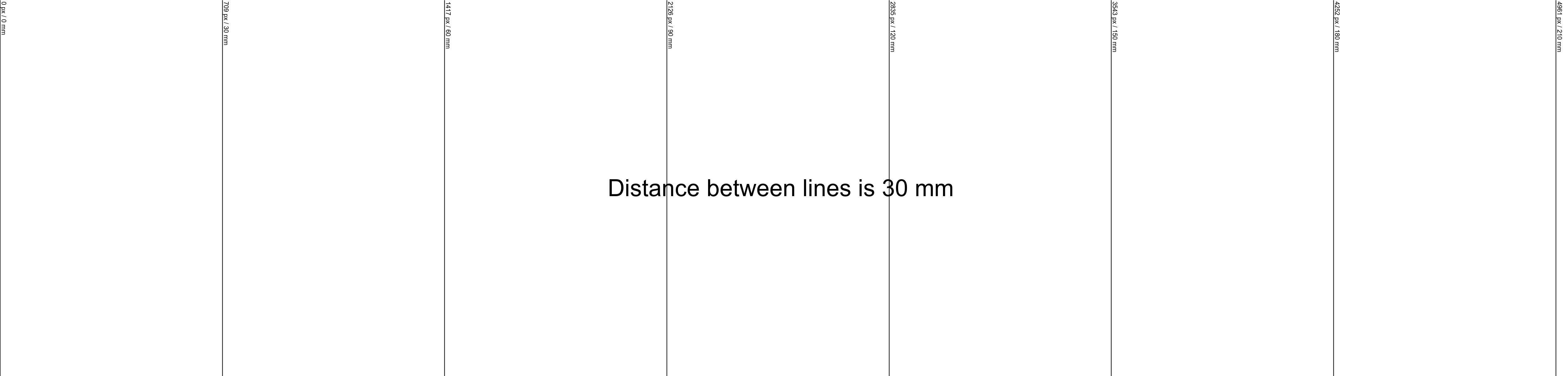

for $x = 10 to $iWidth Step 90
ConsoleWrite("Drawing text line for --> " & $x & @lf)

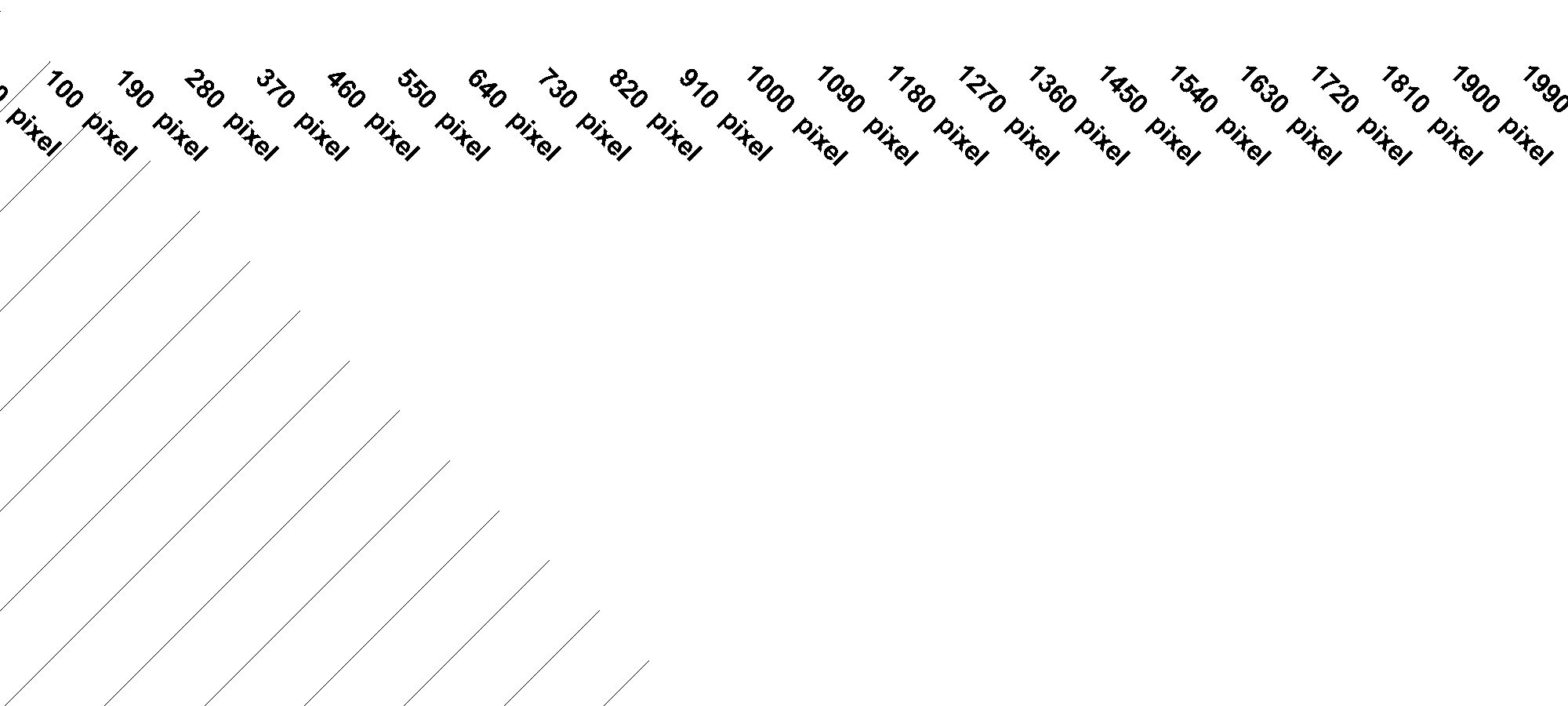

GDIPlus_SetAngledText($hContext, $x & " pixel", $x+15,150, 45, "Arial", 25)
Next
for $x = 10 to $iWidth Step 90
ConsoleWrite("Drawing graphics line for --> " & $x & @LF)
_GDIPlus_GraphicsDrawLine($hContext, $x, 10, $x, $iHeight-10, $hPen)
Next
;save result as JPG and PNG (conversation is done automatically)

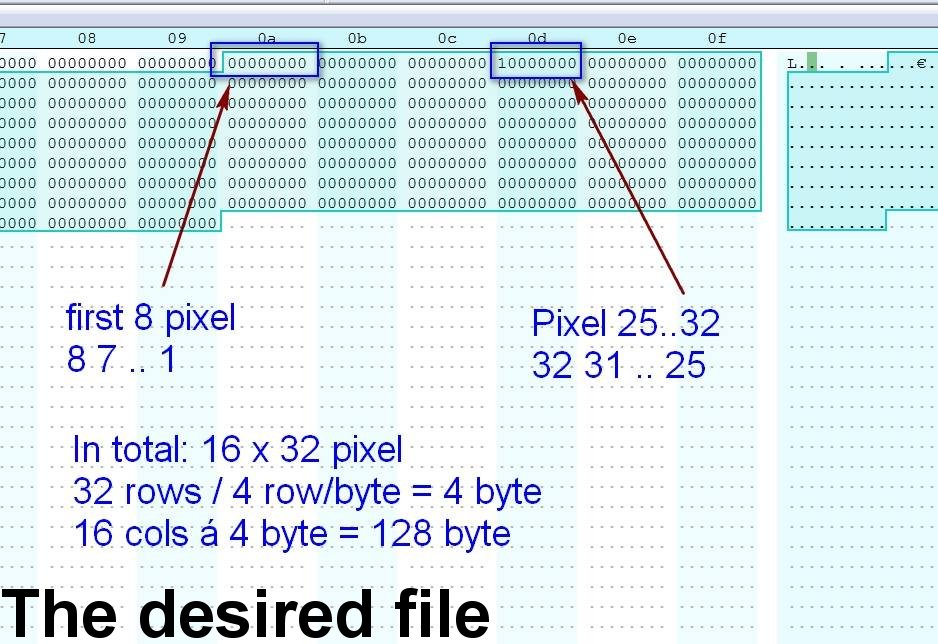

_GDIPlus_ImageSaveToFile($hBitmap, @ScriptDir & "\New_Image.bmp")
_GDIPlus_BitmapDispose($hBitmap) ;release bitmap
_GDIPlus_GraphicsDispose($hContext)
_GDIPlus_Shutdown()
#endregion
; #FUNCTION# ================================================================
; Name...........: GDIPlus_SetAngledText
; Description ...: Adds text to a graphic object at any angle.
; Syntax.........: GDIPlus_SetAngledText($hGraphic, $nText, [$iCentreX, [$iCentreY, [$iAngle , [$nFontName , _
; [$nFontSize, [$iARGB, [$iAnchor]]]]]]] )
; Parameters ....: $hGraphic - The Graphics object to receive the added text.
; $nText - Text string to be displayed
; $iCentreX - Horizontal coordinate of horixontal centre of the text rectangle (default = 0 )
; $iCentreY - Vertical coordinate of vertical centre of the text rectangle (default = 0 )
; $iAngle - The angle which the text will be place in degrees. (default = "" or blank = 0 )
; $nFontName - The name of the font to be used (default = "" or Blank = "Arial" )
; $nFontSize - The font size to be used (default = "" or Blank = 12 )
; $iARGB - Alpha(Transparency), Red, Green and Blue color (0xAARRGGBB) (Default= "" = random color
; or Default = Blank = 0xFFFF00FF )
; $iAnchor - If zero (default) positioning $iCentreX, $iCentreY values refer to centre of text string.
; If not zero positioning $iCentreX, $iCentreY values refer to top left corner of text string.
; Return values .: 1
; Author ........: Malkey
; Modified.......:
; Remarks .......: Call _GDIPlus_Startup() before starting this function, and call _GDIPlus_Shutdown()after function ends.
; Can enter calculation for Angle Eg. For incline, -ATan($iVDist / $iHDist) * 180 / $iPI , where
; $iVDist is Vertical Distance, $iHDist is Horizontal Distance, and, $iPI is Pi, (an added Global Const).
; When used with other graphics, call this function last. The MatrixRotate() may affect following graphics.
; Related .......: _GDIPlus_Startup(), _GDIPlus_Shutdown(), _GDIPlus_GraphicsDispose($hGraphic)
; Link ..........;
; Example .......; Yes
; ========================================================================================
Func GDIPlus_SetAngledText($hGraphic, $nText, $iCentreX = 0, $iCentreY = 0, $iAngle = 0, $nFontName = "Arial", _
$nFontSize = 12, $iARGB = 0xFF000000, $iAnchor = 0)
local Const $iPI = 3.1415926535897932384626433832795
Local $x, $y, $iX, $iY, $iWidth, $iHeight
Local $hMatrix, $iXt, $iYt, $hBrush, $hFormat, $hFamily, $hFont, $tLayout
; Default values
If $iAngle = "" Then $iAngle = 0
If $nFontName = "" Or $nFontName = -1 Then $nFontName = "Arial" ; "Microsoft Sans Serif"
If $nFontSize = "" Then $nFontSize = 12
If $iARGB = "" Then ; Randomize ARGB color
$iARGB = "0xFF" & Hex(Random(0, 255, 1), 2) & Hex(Random(0, 255, 1), 2) & Hex(Random(0, 255, 1), 2)
EndIf
$hFormat = _GDIPlus_StringFormatCreate(0)
$hFamily = _GDIPlus_FontFamilyCreate($nFontName)
$hFont = _GDIPlus_FontCreate($hFamily, $nFontSize, 1, 3)
$tLayout = _GDIPlus_RectFCreate($iCentreX, $iCentreY, 0, 0)
$aInfo = _GDIPlus_GraphicsMeasureString($hGraphic, $nText, $hFont, $tLayout, $hFormat)
$iWidth = Ceiling(DllStructGetData($aInfo[0], "Width"))
$iHeight = Ceiling(DllStructGetData($aInfo[0], "Height"))
;Later calculations based on centre of Text rectangle.
If $iAnchor = 0 Then ; Reference to middle of Text rectangle
$iX = $iCentreX
$iY = $iCentreY
Else ; Referenced centre point moved to top left corner of text string.
$iX = $iCentreX + (($iWidth - Abs($iHeight * Sin($iAngle * $iPI / 180))) / 2)
$iY = $iCentreY + (($iHeight + Abs($iWidth * Sin($iAngle * $iPI / 180))) / 2)
EndIf
;Rotation Matrix
$hMatrix = _GDIPlus_MatrixCreate()
_GDIPlus_MatrixRotate($hMatrix, $iAngle, 1)
_GDIPlus_GraphicsSetTransform($hGraphic, $hMatrix)
;x, y are display coordinates of center of width and height of the rectanglular text box.
;Top left corner coordinates rotate in a circular path with radius = (width of text box)/2.
;Parametric equations for a circle, and adjustments for centre of text box
$x = ($iWidth / 2) * Cos($iAngle * $iPI / 180) - ($iHeight / 2) * Sin($iAngle * $iPI / 180)
$y = ($iWidth / 2) * Sin($iAngle * $iPI / 180) + ($iHeight / 2) * Cos($iAngle * $iPI / 180)
;Rotation of Coordinate Axes formulae - To display at x and y after rotation, we need to enter the
;x an y position values of where they rotated from. This is done by rotating the coordinate axes.
;Use $iXt, $iYt in _GDIPlus_RectFCreate. These x, y values is the position of the rectangular
;text box point before rotation. (before translation of the matrix)
$iXt = ($iX - $x) * Cos($iAngle * $iPI / 180) + ($iY - $y) * Sin($iAngle * $iPI / 180)
$iYt = -($iX - $x) * Sin($iAngle * $iPI / 180) + ($iY - $y) * Cos($iAngle * $iPI / 180)
$hBrush = _GDIPlus_BrushCreateSolid($iARGB)
$tLayout = _GDIPlus_RectFCreate($iXt, $iYt, $iWidth, $iHeight)
_GDIPlus_GraphicsDrawStringEx($hGraphic, $nText, $hFont, $tLayout, $hFormat, $hBrush)
; Clean up resources
_GDIPlus_MatrixDispose($hMatrix)
_GDIPlus_FontDispose($hFont)
_GDIPlus_FontFamilyDispose($hFamily)
_GDIPlus_StringFormatDispose($hFormat)
_GDIPlus_BrushDispose($hBrush)
$tLayout = ""
Return 1
EndFunc ;==>GDIPlus_SetAngledText
Func Color_SetHSL($iHue, $Saturation = 180, $Brightness = 160)
local $aInput =""
If IsArray($iHue) Then
$aInput = $iHue
Else
Local $aInput[3] = [$iHue, $Saturation, $Brightness]
EndIf
Local $aiRGB = _ColorConvertHSLtoRGB($aInput)
Return "0x" & Hex(Round($aiRGB[0]), 2) & Hex(Round($aiRGB[1]), 2) & Hex(Round($aiRGB[2]), 2)
EndFunc ;==>_Color_SetHSL
Alles anzeigen
